ABS SENSOR - FRONT WHEEL

Service repair no - 70.25.32

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

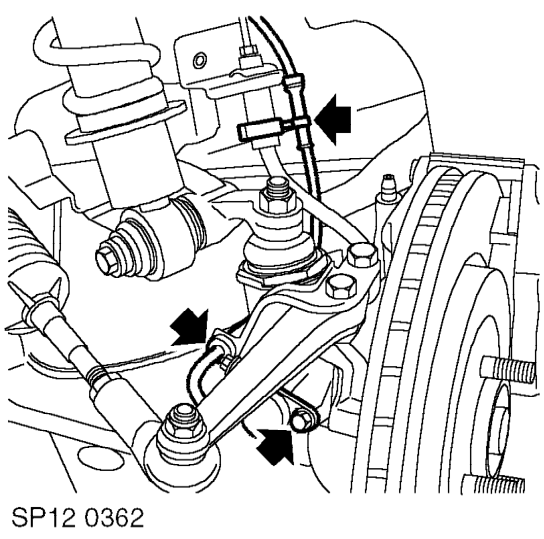

Abs sensor - front wheel – Remove road wheel(s).
  1. Disconnect ABS sensor lead from main harness.
  2. Release ABS sensor lead from clips on subframe turret.
  3. Remove bolt securing ABS sensor to hub.
  4. Remove ABS sensor and spacer from hub.

Refit

  1. Fit ABS sensor and spacer to hub and tighten bolt to 10 Nm.
  2. Fit ABS sensor lead to clips on subframe turret.
  3. Connect ABS sensor lead to main harness.
  4. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  5. Remove stand(s) and lower vehicle.
