MG TF Factory Workshop Manual (2002-2005)16 · Brakes
16 · Brakes

Fluid level switch

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Fluid level switch
BrakesFluid level switch

FLUID LEVEL SWITCH

Service repair no - 70.25.08

Remove

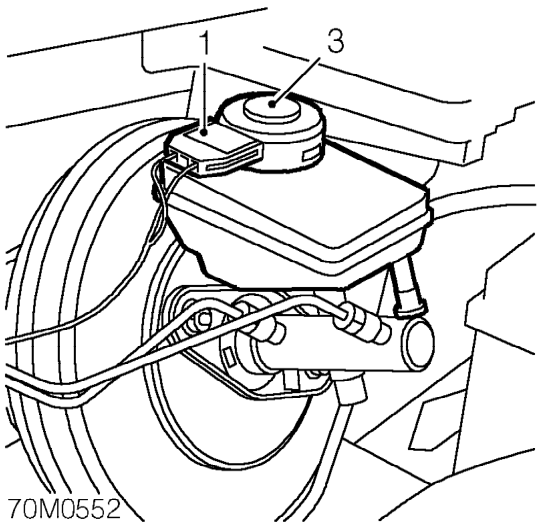

Fluid level switch – Service repair no - 70.25.08
  1. Disconnect switch multiplug.
  2. Clean area around reservoir cap.
  3. Remove cap/switch assembly.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

Refit

  1. Check and top-up fluid level.
  2. Fit cap/switch assembly.
  3. Connect switch multiplug.

ABS HYDRAULIC MODULATOR

Service repair no - 70.25.12

Remove

  1. Disconnect battery earth lead.
  2. Position cloth under modulator to absorb brake fluid.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

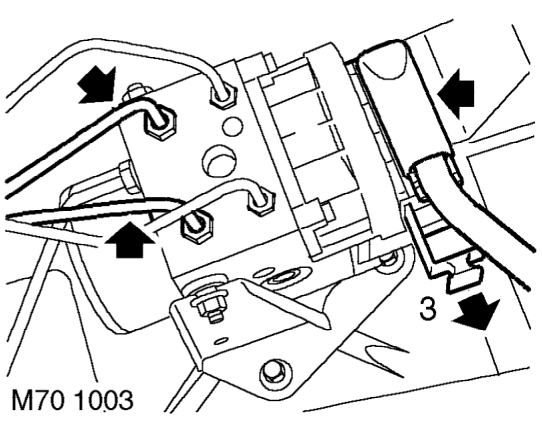

Abs hydraulic modulator – Position cloth under modulator to absorb brake fluid.
  1. Release clip securing ABS modulator multiplug and disconnect multiplug.
  2. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

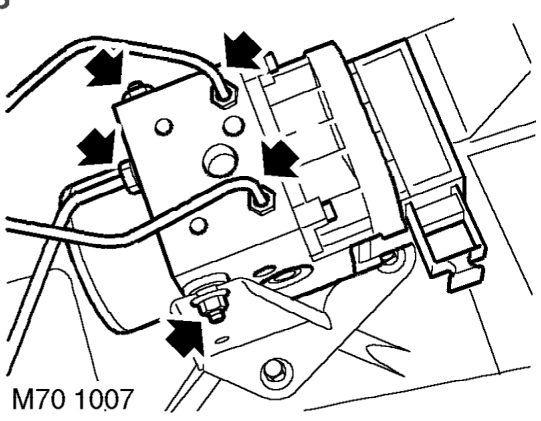

Abs hydraulic modulator – Disconnect 2 inlet brake pipe unions from top of modulator.
  1. Disconnect 3 outlet brake pipe unions from modulator.

CAUTION: Plug the connections.
