Front brake disc - sports

FRONT BRAKE DISC - SPORTS

Service repair no - 70.10.10

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel(s).

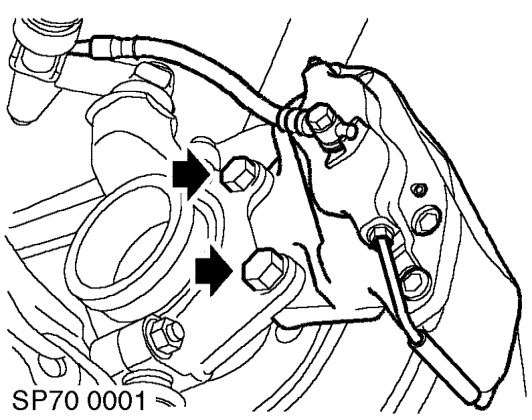

3. Remove 2 bolts securing brake caliper assembly to hub.
4. Remove caliper assembly from hub and tie aside.

CAUTION: Do not allow caliper to hang on brake hose.

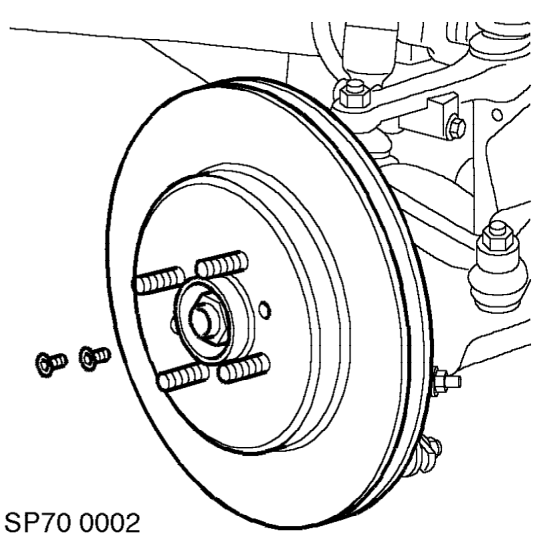

5. Remove 2 screws securing brake disc to drive flange.
6. Remove brake disc.

CAUTION: Brake discs must be renewed in pairs, unless one disc requires changing before 1000 miles (1500 kilometres) from new.

Refit

1. Wire brush drive flange to remove all corrosion deposits. Clean new brake disc.
2. Fit brake disc to drive flange, fit screws and tighten to 7 Nm.
3. Examine brake pads and renew if necessary.
4. Check brake disc run-out. See Adjustments.
5. Position brake caliper to hub, fit and tighten bolts to 85 Nm.
6. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
7. Remove stand(s) and lower vehicle.
