Rear brake disc

REAR BRAKE DISC

Service repair no - 70.10.33

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel.

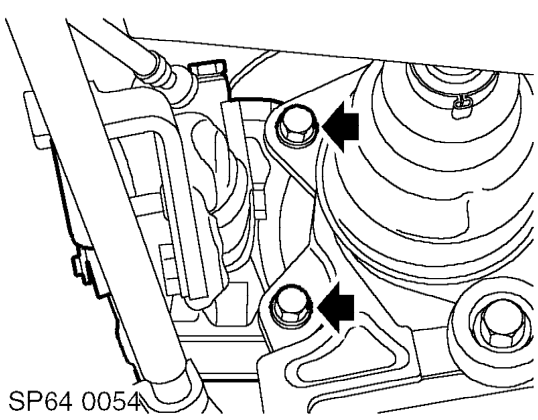

3. Remove 2 bolts securing caliper assembly to hub.
4. Release caliper from disc. Tie caliper clear of brake disc, ensuring the weight of the caliper is supported.

CAUTION: Do not allow caliper to hang on brake hose.

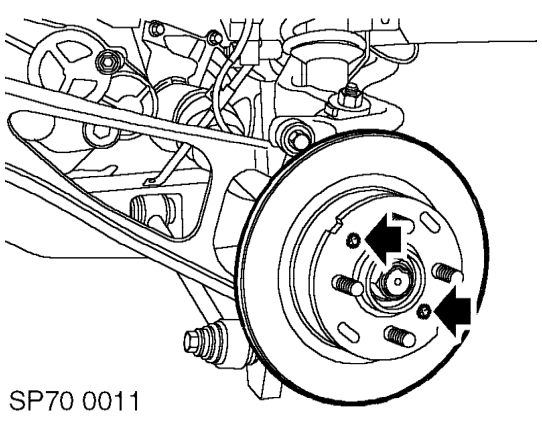

5. Remove 2 screws securing brake disc to drive flange.
6. Remove brake disc.

Refit

1. Wire brush drive flange to remove all corrosion deposits. Clean new brake disc.

CAUTION: Brake discs must be renewed in pairs, unless one disc requires changing before 1000 miles (1500 kilometers) from new.

2. Fit brake disc to drive flange. Tighten screws to 7 Nm.
3. Check brake disc runout. See Adjustments.
4. Examine brake pads and renew if necessary.
5. Untie caliper, position caliper to hub, fit and tighten bolts to 85 Nm.
6. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
7. Remove stands and lower vehicle.
