MG TF Factory Workshop Manual (2002-2005)16 · Brakes
16 · Brakes

Brake light switch

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Brake light switch
BrakesBrake light switch

BRAKE LIGHT SWITCH

Service repair no - 70.35.42

Remove

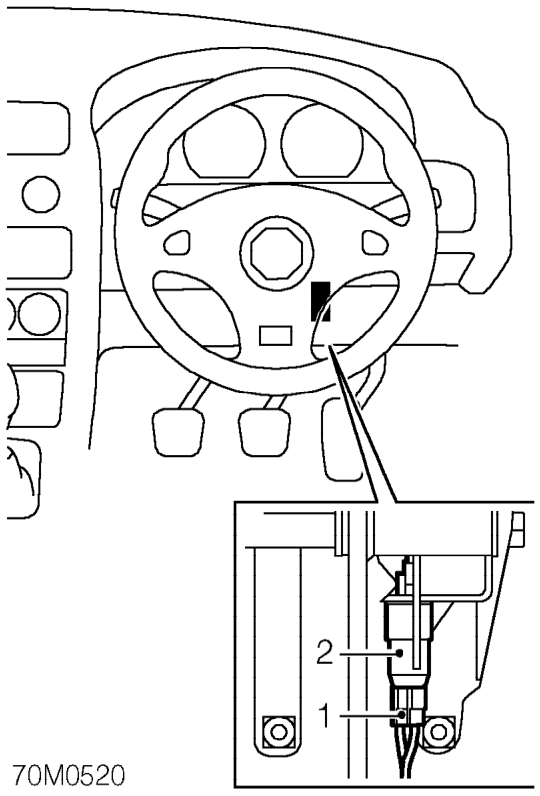

Brake light switch – Service repair no - 70.35.42
  1. Release 2 Lucar connectors from switch.
  2. Release bayonet fixing and remove switch.

Refit

  1. Fit switch to pedal box.
  2. Connect Lucar connectors.
  3. Adjust switch. See Adjustments.

BRAKE PADS - FRONT - STANDARD

Service repair no - 70.40.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Brake pads - front - standard – Remove road wheel(s).
  1. Remove lower guide pin bolt from caliper and pivot caliper body upwards.
  2. Remove 2 brake pads from caliper carrier.
