FUEL INJECTORS - MPi

Service repair no - 19.60.12

Remove

  1. Disconnect battery earth lead.
  2. Remove fuel rail. See this section.
  3. Release multiplugs from injectors.

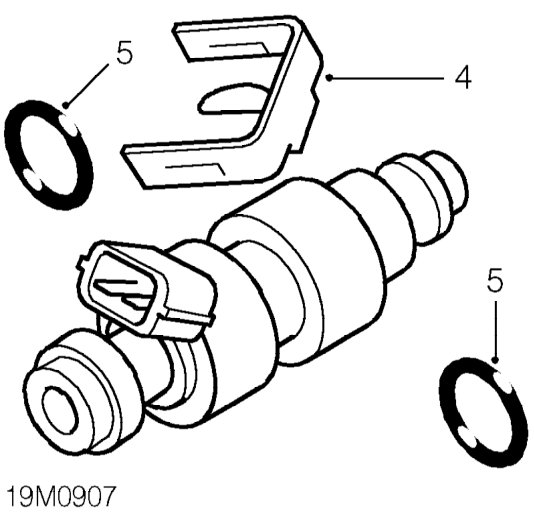

Fuel injectors - mpi – Release multiplugs from injectors.
  1. Release spring clips securing injectors to fuel rail.
  2. Remove injectors and discard 2 ’O’ rings from each injector.
  3. Fit protective caps to each injector.

Refit

  1. Clean injectors and injector recesses in fuel rail and inlet manifold.
  2. Lubricate 8 new ’O’ rings with castor oil and fit to injectors.
  3. Fit fuel rail to injectors.
  4. Fit spring clips to secure injectors to fuel rail.
  5. Fit multiplugs to injectors.
  6. Fit fuel rail. See this section.
  7. Connect battery earth lead.

FUEL INJECTORS - VVC

Service repair no - 19.60.12

Remove

  1. Disconnect battery earth lead.
  2. Remove fuel rail. See this section.

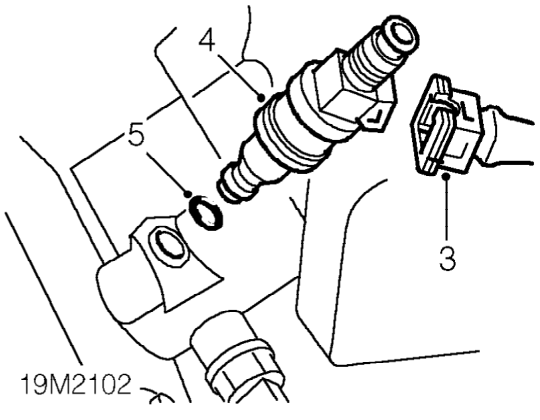

Fuel injectors - vvc – Remove fuel rail. See this section.
  1. Disconnect multiplugs from injectors.
  2. Remove injectors from inlet manifold.
  3. Remove and discard ’O’ rings from injectors.

Refit

  1. Lubricate new ’O’ rings with castor oil and fit to injectors.
  2. Fit injectors to fuel rail and connect multiplugs.
  3. Fit fuel rail. See this section.
  4. Connect battery earth lead.
