Filler neck

WARNING: Fuel vapour is highly flammable and in confined spaces is also explosive and toxic. Always have a fire extinguisher containing foam, CO₂, gas or powder close at hand when handling or draining fuel.

7. Disconnect fuel pump multiplug.
8. Position absorbent cloth around fuel hoses to collect any fuel spillage.

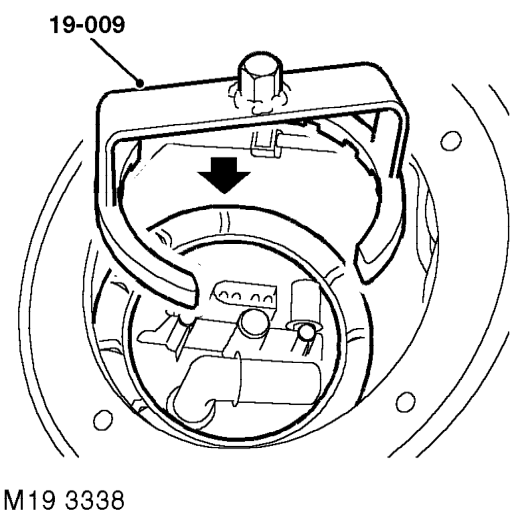

9. Noting fitted position, release fuel feed and return hoses from pump.

10. Using tool 19-009, loosen and remove fuel pump locking ring from tank.
11. Remove fuel pump retaining ring, release fuel pump and remove from tank. Discard fuel tank sealing ring.

Refit

1. Clean fuel pump and mating face.
2. Fit new fuel pump seal to pump body, locate pump assembly through tank opening. Fit seal to tank, push pump fully home taking care not to dislodge the seal.
3. Fit fuel pump locking ring and using tool 19-009, tighten to 35 Nm.
4. Connect fuel feed and return hoses to pump.
5. Connect multiplug to fuel pump.
6. Connect fuel pump breather hose and secure with clip.
7. Fit fuel pump access cover, fit and tighten bolts to 10 Nm.
8. Fit subwoofer assembly. See ELECTRICAL, Repairs.
9. Fit engine cover. See ENGINE, Repairs.
10. Connect battery earth lead.

FILLER NECK

Service repair no - 19.55.07

Remove

1. Disconnect battery earth lead.
2. Remove air cleaner. See this section.

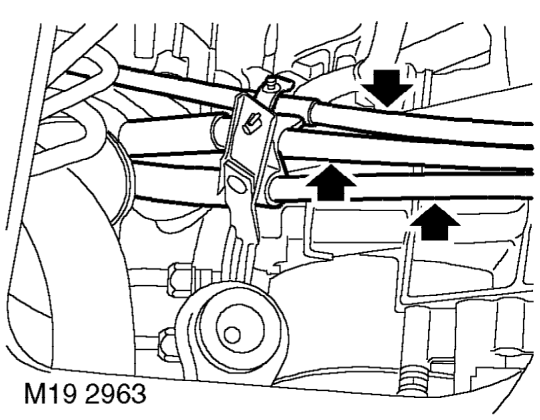

3. Drain fuel tank. See Adjustments.

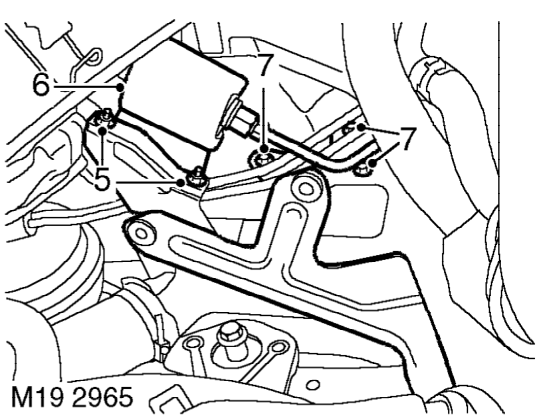

4. Release 3 cables from air cleaner support bracket.

5. Remove 2 nuts securing fuel filter to air cleaner support bracket.
6. Release fuel filter from support bracket and position aside.
7. Remove 3 bolts securing air cleaner support bracket to body and remove bracket.
