Filler neck (page 2 of 2)

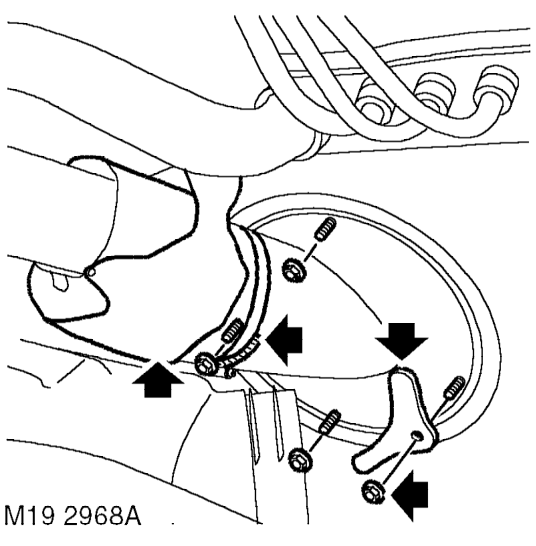

8. Remove 4 nuts securing filler neck gaiter and collect gaiter clamp.

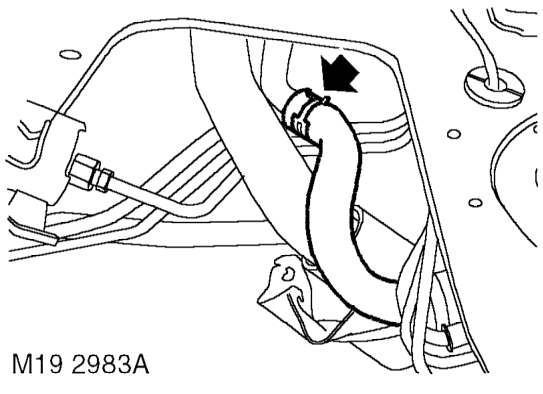

9. Slide gaiter up filler neck, loosen clip and release hose from filler neck.

10. Release clip securing breather hose to filler neck and disconnect hose.
11. Remove fuel filler cap.

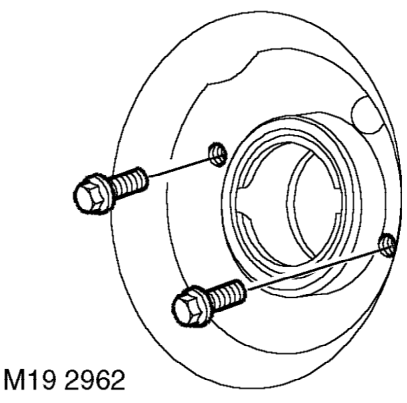

12. Remove 2 bolts securing filler neck to body and remove filler neck.

Refit

1. Position filler neck, fit and tighten 2 bolts securing neck to body.
2. Connect tank hose to filler neck and secure with clip.
3. Connect breather hose to filler neck and secure with clip.
4. Manoeuvre gaiter into position, fit clamping plate and secure with nuts.
5. Position air cleaner support bracket, fit and tighten bolts.
6. Connect cables to clips.
7. Fit fuel filter to support bracket and secure with nuts.
8. Refill fuel tank. See Adjustments.
9. Fit fuel cap.
10. Fit air cleaner. See this section.
11. Connect battery earth lead.
