Engine management (MEMS 3), fuel and emission systemsCatalytic converter

Refit

  1. Position EVAP canister and secure in support bracket.
  2. Connect hose to inlet manifold and secure with clip.
  3. Connect feed hose.
  4. Connect multiplug to purge valve.
  5. Fit engine compartment access panel. See ENGINE, Repairs.
  6. Connect battery earth lead.

CATALYTIC CONVERTER

Service repair no - 17.50.01

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

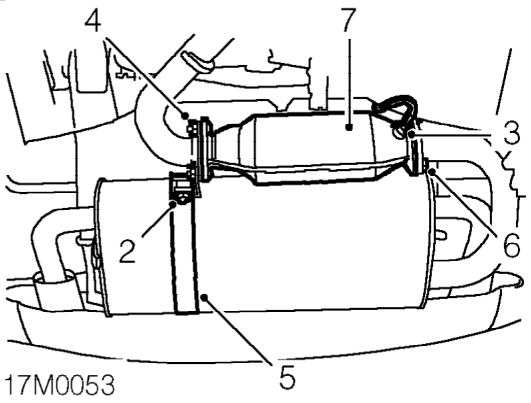

Catalytic converter – Raise rear of vehicle.
  1. Remove nut and special washer securing rear silencer clamp.
  2. Remove catalyst overheat sensor from catalyst (if fitted) .
  3. Remove 3 flange nuts securing catalytic converter to front pipe.
  4. Remove rear silencer clamp.
  5. Remove 3 flange nuts securing catalytic converter to silencer.
  6. Remove catalytic converter.
  7. Remove and discard gaskets.
