Ignition coil - MPi

IGNITION COIL - MPi

Service repair no - 18.20.44

Remove

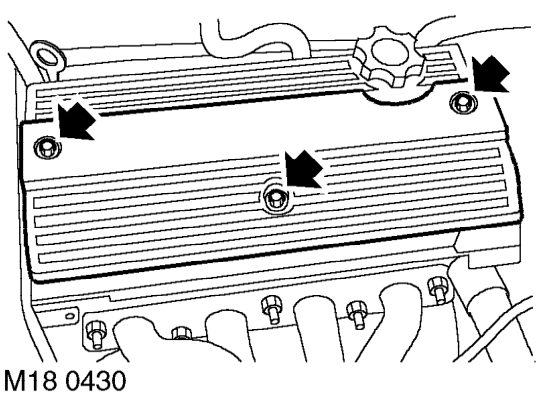

1. Remove engine cover. See ENGINE, Repairs.

2. Remove 3 screws securing coil cover.

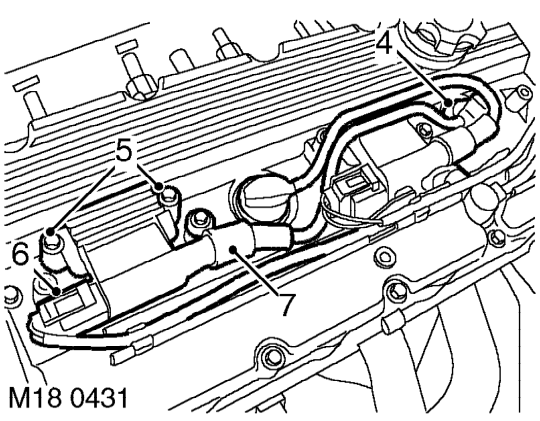

3. Remove cover.

4. Release ht lead from spark plug.
5. Remove 2 bolts securing coil and release coil from spark plug.
6. Disconnect multiplug from coil and remove coil.
7. Remove ht lead from coil.

Refit

1. Fit ht lead to coil.
2. Fit coil and connect multiplug.
3. Fit and tighten bolts securing coil to 8 Nm.
4. Connect ht lead to spark plug and secure lead in clip.
5. Fit coil cover and tighten bolts to 8 Nm.
6. Fit engine cover. See ENGINE, Repairs.

SWITCH - INERTIA FUEL SHUT-OFF

Service repair no - 19.22.09

Remove

1. Disconnect battery earth lead.
2. Remove engine compartment access panel. See BODY, Exterior fittings.

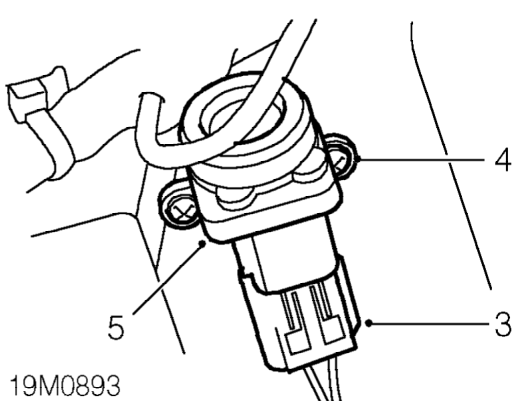

3. Disconnect multiplug from switch.
4. Remove 2 Torx screws securing switch to body.
5. Remove switch.

Refit

1. Fit switch and tighten screws.
2. Connect multiplug to switch.
3. To ensure switch is set in correct position, press down on top.
4. Fit engine compartment access panel. See BODY, Exterior fittings.
5. Connect battery earth lead.
