AIR CLEANER

Service repair no - 19.10.01

Remove

  1. Remove air cleaner element. See this section.
Air cleaner – Remove air cleaner element. See this section.

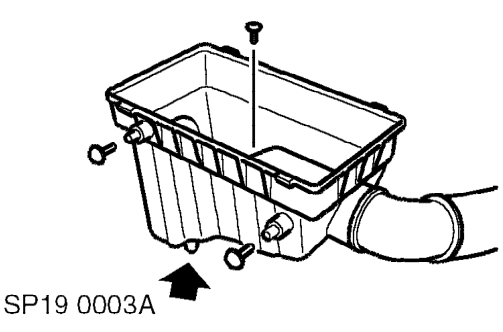

  1. Remove 2 retaining studs securing air cleaner to support bracket.
  2. Release air cleaner from lower grommet.
  3. Release front air intake hose.
  4. Remove screw securing rear air intake hose.
  5. Release rear air intake hose and manoeuvre air cleaner from engine bay.

Refit

  1. Position air cleaner and align rear air intake hose.
  2. Fit and tighten screw securing rear air intake hose.
  3. Align and connect front air intake hose.
  4. Secure air cleaner in lower grommet.
  5. Align air cleaner to support bracket and fit retaining studs.
  6. Fit air cleaner element. See this section.

ELEMENT - AIR CLEANER

Service repair no - 19.10.10

Remove

  1. Disconnect battery earth lead.
  2. Remove engine cover. See ENGINE, Repairs.
  3. Remove engine compartment access cover. See BODY, Exterior fittings.
Element - air cleaner – Remove engine compartment access cover. See BODY, Exterior fittings.

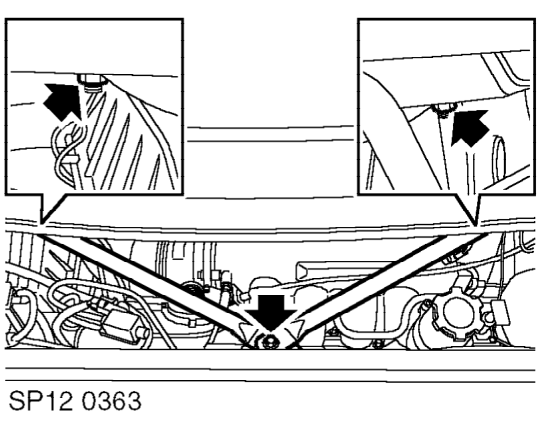

  1. Remove nut securing LH cross bracing and remove and discard bolt securing cross bracing.
  2. Remove LH cross bracing.
Element - air cleaner – Remove LH cross bracing.
  1. Release clip and disconnect air intake hose from throttle body.
  2. Loosen clip securing air intake hose to air cleaner and remove hose.

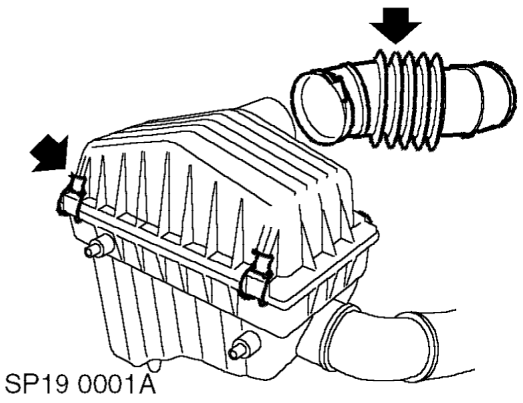

  3. Release 4 clips securing air cleaner cover.
