MG TF Factory Workshop Manual (2002-2005)08 · Manifolds and exhaust system
08 · Engine

Gasket - inlet manifold - MPi (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Manifolds and exhaust systemGasket - inlet manifold - MPi · page 2 of 3
Diagram

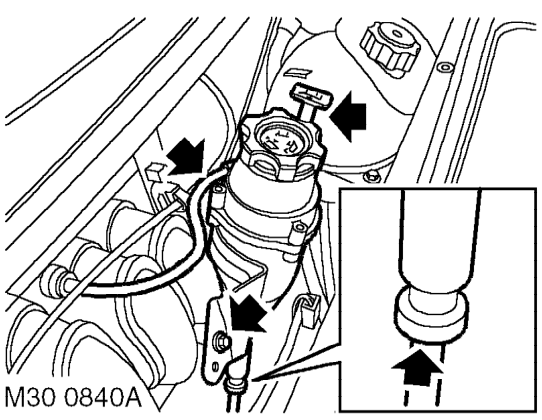

  1. Remove dipstick.
  2. Release vacuum pipe from dipstick/ oil filler tube.
  3. Remove bolt securing engine oil level dipstick/filler tube bracket to manifold.
  4. Release clip securing dipstick/filler tube to pipe and remove tube.

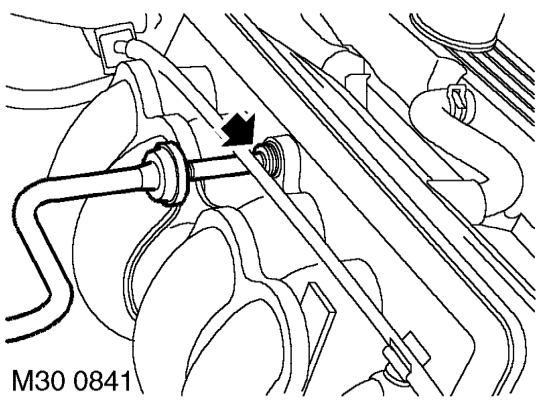

Release clip securing dipstick/filler tube to pipe and remove tube.
  1. Release brake servo vacuum pipe from manifold chamber.

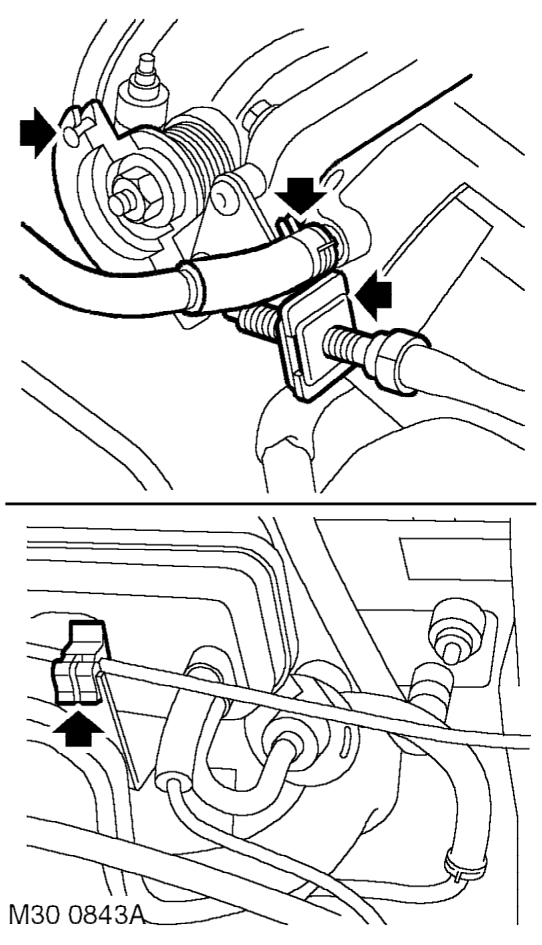

Release brake servo vacuum pipe from manifold chamber.
  1. Release EVAP canister hose from inlet manifold chamber.
  2. Release EVAP canister from support bracket and position canister aside.
  3. Release throttle cable from manifold chamber clip.
  4. Release throttle cable from abutment bracket.
  5. Release inner cable from throttle cam.

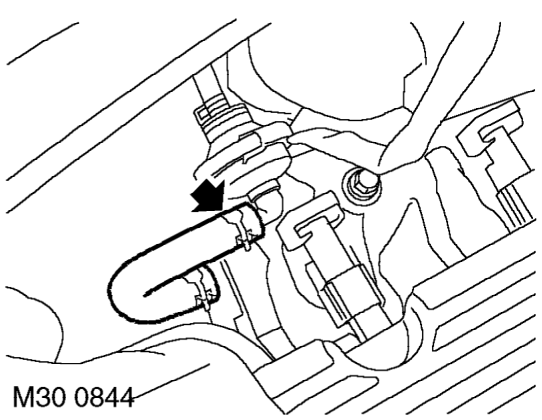

Release inner cable from throttle cam.
  1. Release clip securing fuel return hose to inlet manifold and release hose.
