MG TF Factory Workshop Manual (2002-2005)08 · Manifolds and exhaust system
08 · Engine

Gasket - inlet manifold - MPi (page 3 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Manifolds and exhaust systemGasket - inlet manifold - MPi · page 3 of 3
Diagram

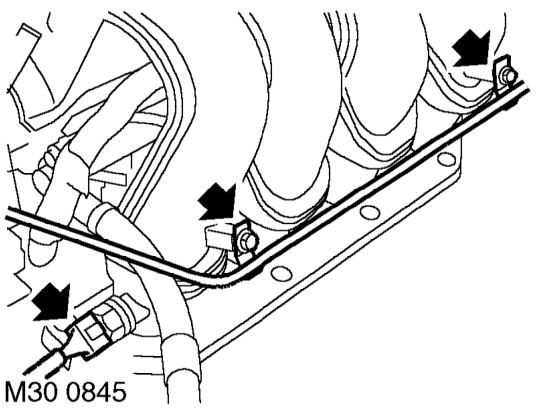

  1. Remove 2 bolts securing return pipe to inlet manifold and position pipe aside.
  2. Disconnect IAT sensor multiplug.

CAUTION: Always fit plugs to open connections to prevent contamination.

Disconnect IAT sensor multiplug.

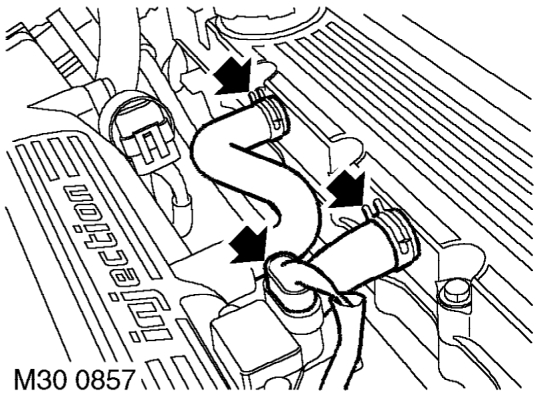

  1. Release clip and disconnect coolant hose from inlet manifold.
Release clip and disconnect coolant hose from inlet manifold.
  1. Release 2 clips and 2 breather hoses from camshaft cover.
  2. Disconnect MAP sensor multiplug.

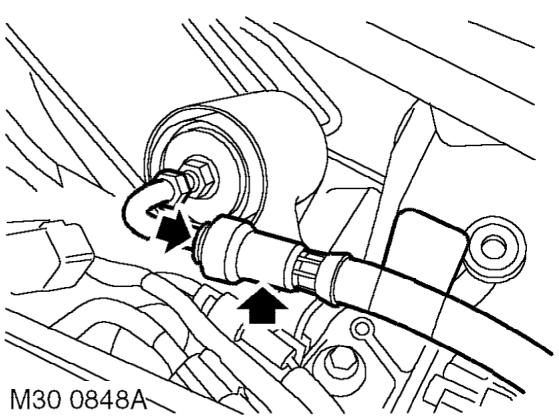

  3. Position absorbent cloth to collect any fuel spillage.
Position absorbent cloth to collect any fuel spillage.
  1. Release fuel feed hose from fuel filter pipe.

CAUTION: Always fit plugs to open connections to prevent contamination.

Release fuel feed hose from fuel filter pipe.

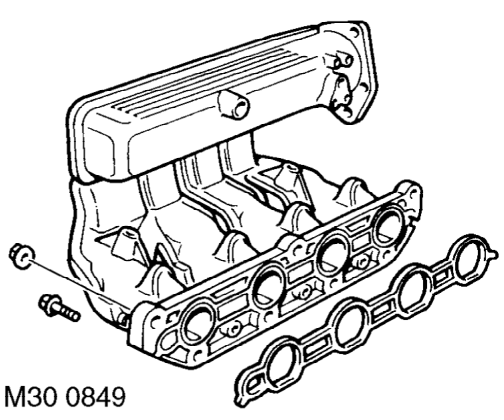

  1. Remove 3 nuts and 4 bolts securing inlet manifold to cylinder head.
