Rear suspensionArm assembly - upper
  1. Fit upper suspension arm. See this section.
  2. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  3. Remove stands and lower vehicle.

ARM ASSEMBLY - UPPER

Service repair no - 64.35.60

Remove

  1. Raise rear of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel.

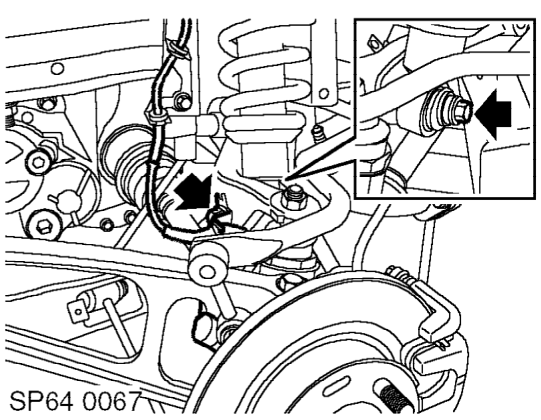

Arm assembly - upper – Remove road wheel.
  1. Remove nut and bolt securing damper to upper suspension arm.
  2. Release ABS sensor harness bracket.

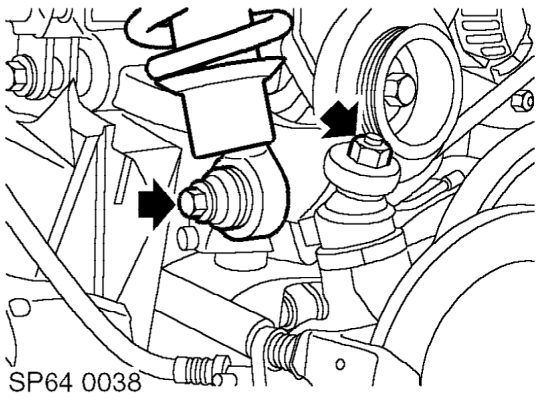

Arm assembly - upper – Release ABS sensor harness bracket.
  1. Remove and discard lock nut securing ball joint to upper suspension arm.
  2. Fit slave nut to ball joint threads, position tool 18G-1584, release ball joint taper from upper suspension arm. Remove slave nut.
