MG TF Factory Workshop Manual (2002-2005)15 · Rear suspension
15 · Steering & suspension

Track control arm

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Track control arm
Rear suspensionTrack control arm

Refit

  1. Position lower link to subframe and rear hub.
  2. Fit lower link bush spacer.
  3. With the weight of the vehicle on the suspension, tighten lower link to subframe bolt to 85 Nm and lower link to rear hub bolt to 100 Nm.
  4. Fit bolt access grommet to subframe.
  5. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  6. Remove stands and lower vehicle.

TRACK CONTROL ARM

Service repair no - 64.35.14

Remove

  1. Raise rear of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel.
Track control arm – Remove road wheel.
  1. Remove nut securing track control arm ball joint to rear hub.

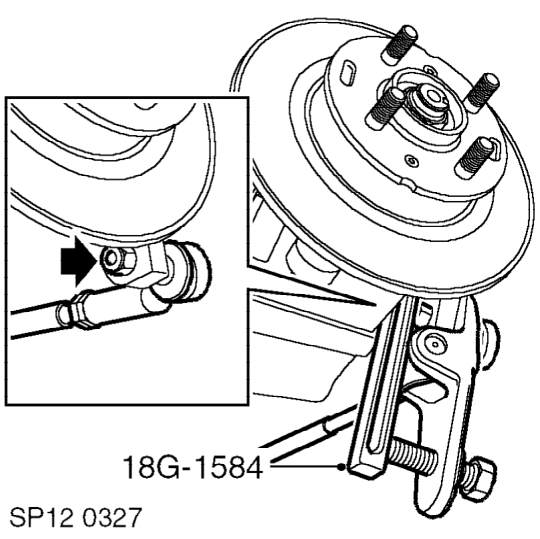

  2. Fit slave nut to ball joint threads, position tool 18G 1584 , release ball joint taper from rear hub. Remove slave nut.
Track control arm – Fit slave nut to ball joint threads, position tool 18G 1584 , release ball joint taper fro

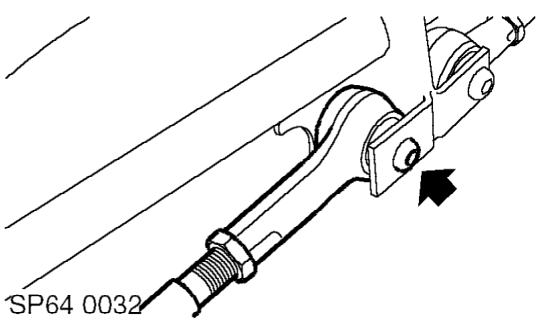

  1. Remove torx bolt securing track control arm to subframe and remove track control arm.
