Rear suspensionBush - arm assembly - upper
  1. Fit trailing arm. See this section.
  2. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  3. Remove stands and lower vehicle.

BUSH - ARM ASSEMBLY - UPPER

Service repair no - 64.35.56

Remove

  1. Raise rear of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel.
  2. Remove upper suspension arm. See this section.

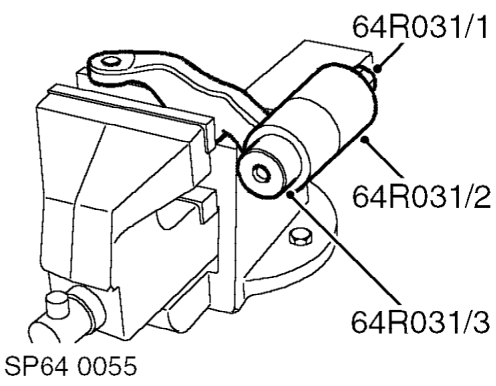

Bush - arm assembly - upper – Remove upper suspension arm. See this section.
  1. Position upper suspension arm in vice.
  2. Note the fitted position of upper arm bush.
  3. Using 64R031 remove upper arm bush.

Refit

  1. Clean upper arm bush and bush mating face.

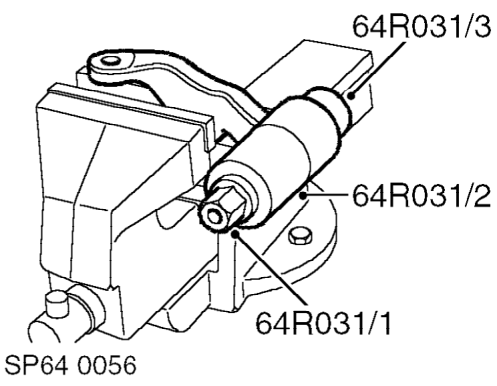

Bush - arm assembly - upper – Clean upper arm bush and bush mating face.
  1. Ensure correct orientation of upper arm bush.
  2. Using 64R031 fit upper arm bush.
  3. Remove upper arm assembly from vice.
