Lower link - rear

Refit

1. Clean anti-roll bar link.
2. Correctly position anti-roll bar link to trailing arm, fit bolt and nut but do not tighten at this stage.
3. Correctly position anti-roll bar to anti-roll bar link, fit bolt and nut but do not tighten at this stage.
4. With the weight of the vehicle on the rear suspension, tighten anti-roll bar link nuts and bolts to 35 Nm.
5. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
6. Remove stand(s) and lower vehicle.

LOWER LINK - REAR

Service repair no - 64.35.13

Remove

1. Raise rear of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel.

3. Remove lower link access grommet from subframe.

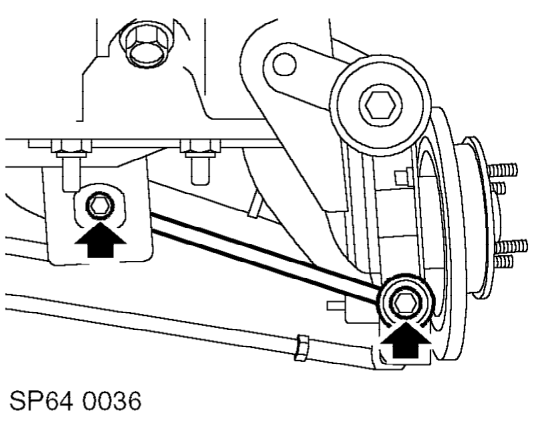

4. Remove 2 bolts securing lower link to subframe and rear hub.
5. Remove lower link assembly.
6. Collect lower link bush spacer.
