• Insert the strut between the two brack shoes.
• Fit the upper and lower return springs between the brake shoes. First engage the spring hook on one side and then stretch the spring with a pair of pliers until the other end can be engaged. The spring hooks are inserted from the outside towards the inside.
• The next operations are carried out by referring to Fig. 8.12. Engage the spring (3) with the brake shoe and the other end with the adjuster lever (1).

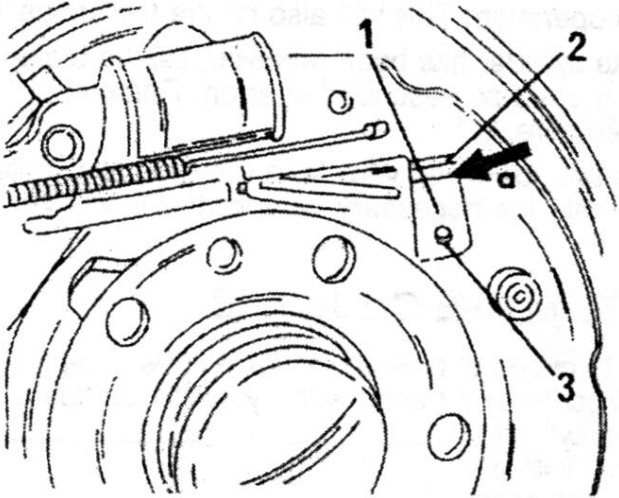

Fig. 8.13. — When fitting the automatic adjuster lever (1) fit the end “a” below the link (2) and above the pin (3).

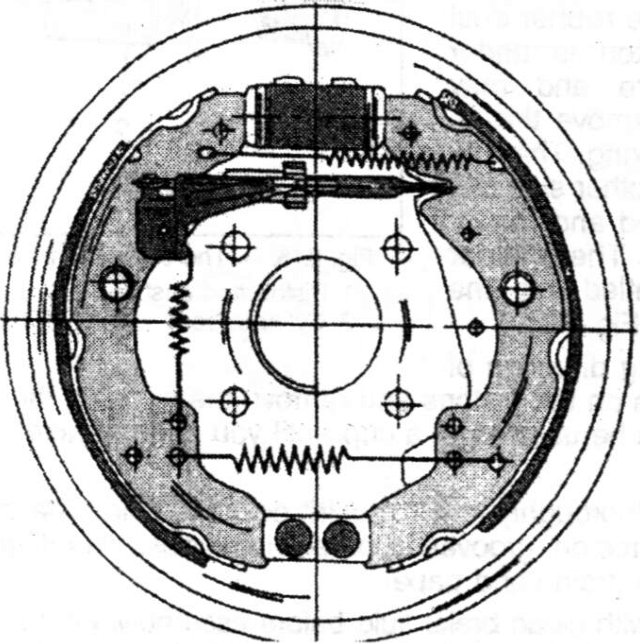

Fig. 8.14. — Before fitting the brake drums compare the fitted brake shoes with the illustration to make sure all parts are fitted as shown. This mainly concerns the return springs.
