Steering6.0. Technical Data

6.0. Technical Data

Type: Rack and pinion steering

Number of pinion teeth: 5

Number of rack teeth: 25

Steering Ratio:

  • Mechanical steering: 25.2 : 1
  • Power-steering: 16.0 : 1

Turning Circle between Kerb Stones:

  • Wheelbase 2315 mm: 4.65 m
  • Wheelbase 2923 mm: 5.70 m
  • Wheelbase 3200: 6.15 m
  • Wheelbase 3650: 6.95 m
View of the fitted steering

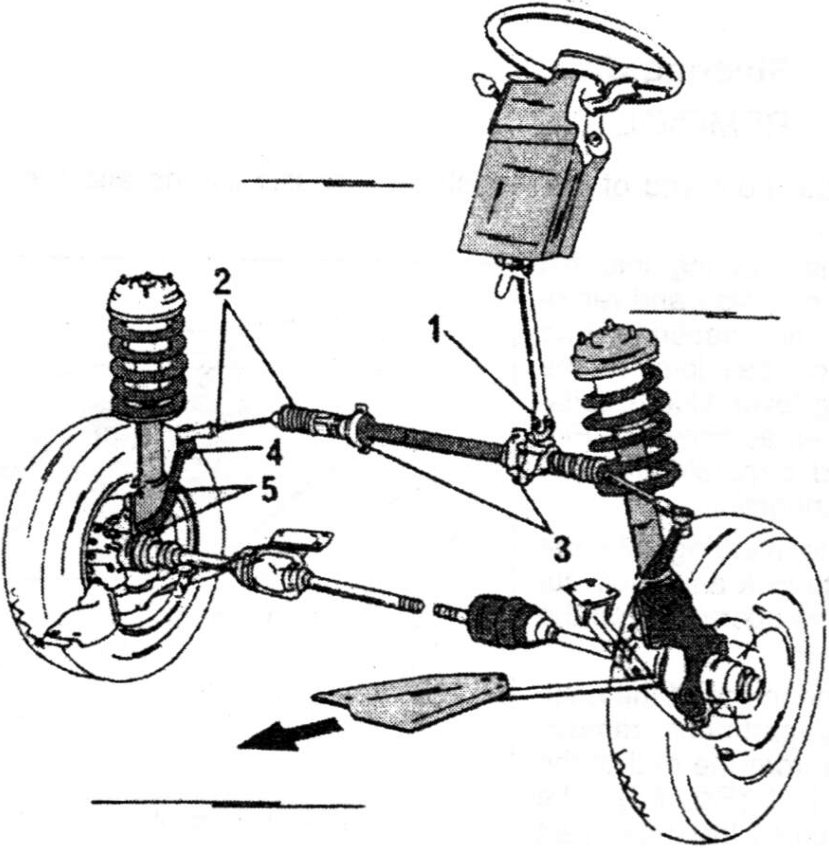

Fig. 6.1. — View of the fitted steering. The numbers refer to the tightening torques. The arrow points in the direction of drive. 1 = 2.5 kgm, 2 = 6.0 kgm, 3 = 5.0 kgm, 4 = 5.5 kgm, 5 = 12.5 kgm.

Power Steering:

  • Manufacturer: Saginaw T.C.
  • Capacity of reservoir: approx. 0.3 litres
  • Capacity of system: 1.1 litres
  • Type of fluid: ATF fluid
