ENGINE OVERHEAT SENSOR - ’L’ SERIES

Service repair no - 82.20.30

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

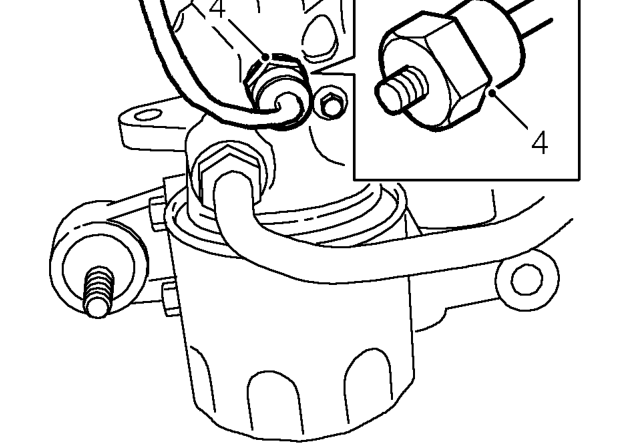

  1. Disconnect engine overheat sensor multiplug from engine harness.
Engine overheat sensor - ’l’ series – Disconnect engine overheat sensor multiplug from engine harness.
  1. Using a 22 mm crowsfoot spanner, remove engine overheat sensor.

Refit

  1. Clean temperature switch threads.
  2. Fit temperature switch and tighten to 15 Nm.
  3. Connect switch multiplug to engine harness
  4. Remove stand(s) and lower vehicle.
  5. Connect battery earth lead.

TRINARY PRESSURE SWITCH

Service repair no - 82.20.86

NOTE: Because the receiver/dryer has to be replaced whenever the air conditioning system is opened, the trinary pressure switch is included in the procedure for renewing the receiver/dryer. See this section.
