EVAPORATOR

Service repair no - 82.25.20

Remove

  1. Recover refrigerant from air conditioning system. See Adjustments.
Evaporator – Recover refrigerant from air conditioning system. See Adjustments.

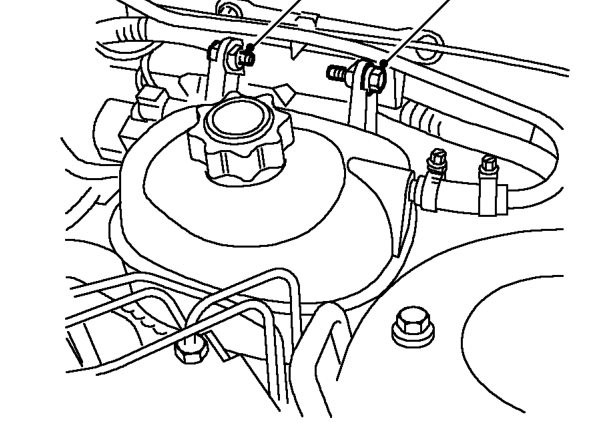

  1. Remove bolts securing expansion tank to bulkhead and move aside.
Evaporator – Remove bolts securing expansion tank to bulkhead and move aside.

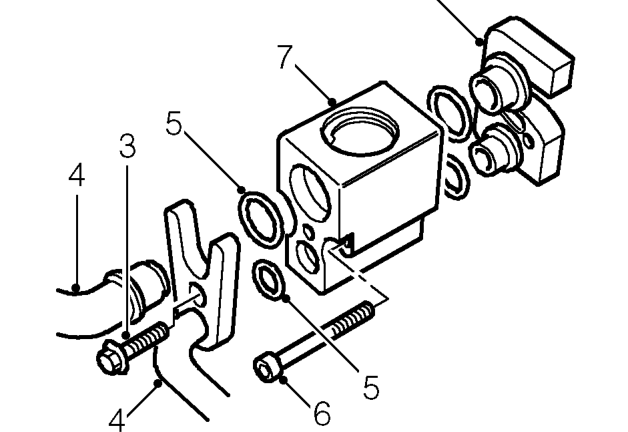

  1. Remove bolt securing air conditioning pipes to thermostatic expansion valve.
  2. Release pipes from valve.
  3. Remove and discard 2 ’O’ rings from air conditioning pipes.
  4. Remove 2 Allen screws securing thermostatic expansion valve to evaporator pipes.
  5. Remove valve.
  6. Remove expansion valve clamping bracket from evaporator pipes.
  7. Remove glovebox. See BODY, Interior trim components.
Evaporator – Remove glovebox. See BODY, Interior trim components.

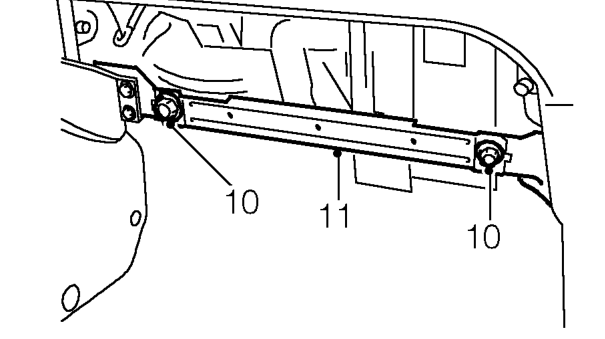

  1. Remove 2 bolts securing rail to fascia.
  2. Remove rail.
