Air conditioningEvaporator · page 2 of 3
Diagram

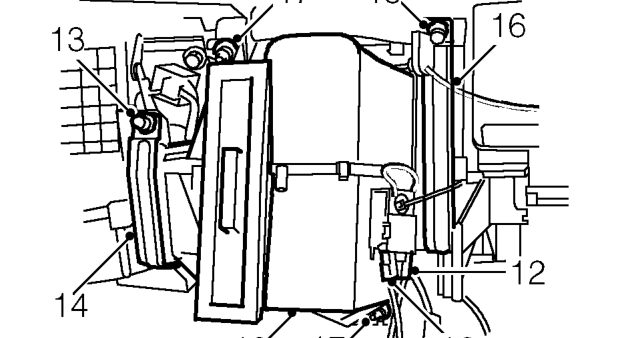

  1. Disconnect 2 Lucars from evaporator thermostat.
  2. Remove screw securing evaporator to blower assembly strap.
  3. Remove strap.
  4. Remove screw securing evaporator to heater assembly strap.
  5. Remove strap.
  6. Remove 2 nuts securing evaporator to bulkhead.
  7. Remove evaporator.

Do not carry out further dismantling if component is removed for access only.

Do not carry out further dismantling if component is removed for access only.

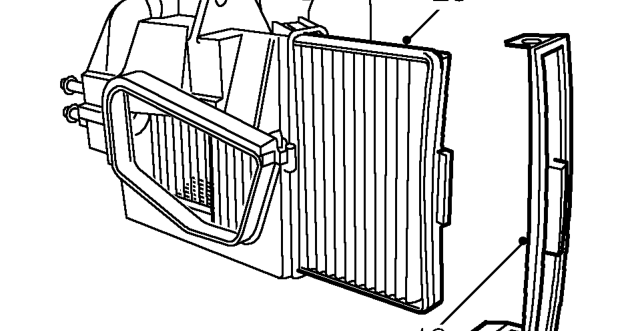

  1. Remove air filter cover.
  2. Remove air filter from evaporator.
Remove air filter from evaporator.

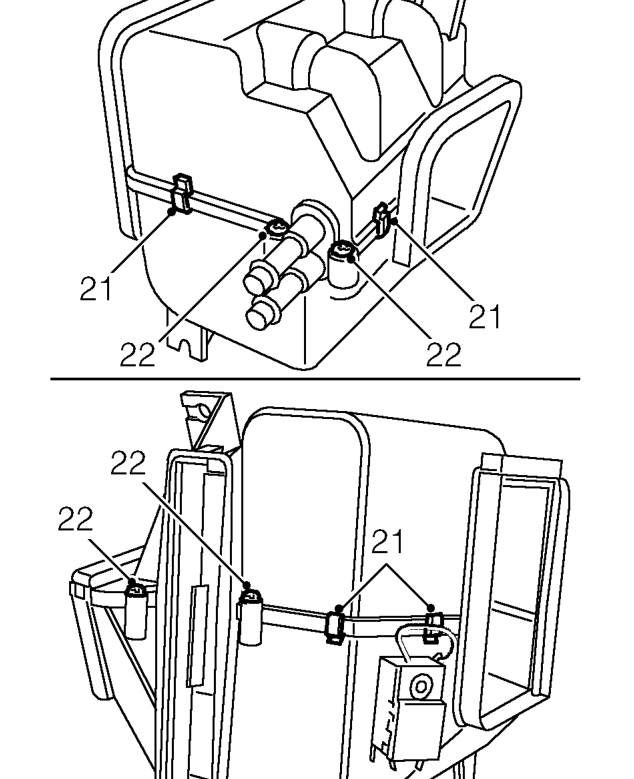

  1. Remove 5 clips securing casing.
  2. Remove 4 screws securing casing.
  3. Using a sharp blade, cut foam seals across casing mating faces.
