Condenser cooling fan

Refit

1. Position compressor and manoeuvre onto mounting bracket.
2. Fit 2 lower through bolts and nuts securing compressor to mounting bracket.
3. Raise engine and fit upper bolts and nut securing compressor to mounting bracket.
4. Tighten compressor mounting bolts to 45 Nm.
5. Restore engine to correct height.
6. Fit RH engine mounting bracket to engine and tighten bolts to 80 Nm.
7. Fit nut securing engine mounting to bracket and tighten to 80 Nm.
8. Position restraining bar and tighten nuts to 80 Nm.
9. Align RH steady bar to engine mounting bracket, fit and tighten bolt to 45 Nm.
10. Tighten bolt, RH steady bar to body to 80 Nm.
11. Align lower steady bar to engine, fit and tighten bolt to 45 Nm.
12. Remove jack.
13. Position front beam, fit bolts and tighten to 100 Nm.
14. Clean compressor and pipe connections.
15. Remove caps from compressor and pipe connections.
16. Lubricate 2 new ’O’ rings seals with refrigerant oil and fit to compressor.
17. Position air conditioning pipe union to compressor, fit securing bolt and tighten to 45 Nm.
18. Connect multiplug to compressor.
19. Clean air conditioning pipe connections.
20. Remove caps from condenser air conditioning pipes.
21. Lubricate new ’O’ rings with refrigerant oil and fit to air conditioning pipes.
22. Remove caps from condenser.
23. Position condenser to body and engage air conditioning pipes.
24. Fit bolts securing air conditioning pipes to condenser and tighten to 9 Nm.
25. Fit 2 mounting brackets to cooling fan housing.
26. Align mounting brackets to body, fit bolts and tighten to 9 Nm.
27. Position support stay to bonnet platform and body, fit bolts and tighten to 9 Nm.
28. Replace receiver/dryer. See this section.
29. Recharge air conditioning system. See Adjustments.
30. Fit auxiliary drive belt. See ELECTRICAL, Repairs.
31. Fit radiator. See COOLING SYSTEM - ’L’ SERIES, Repairs.

CONDENSER COOLING FAN

Service repair no - 82.15.01

Remove

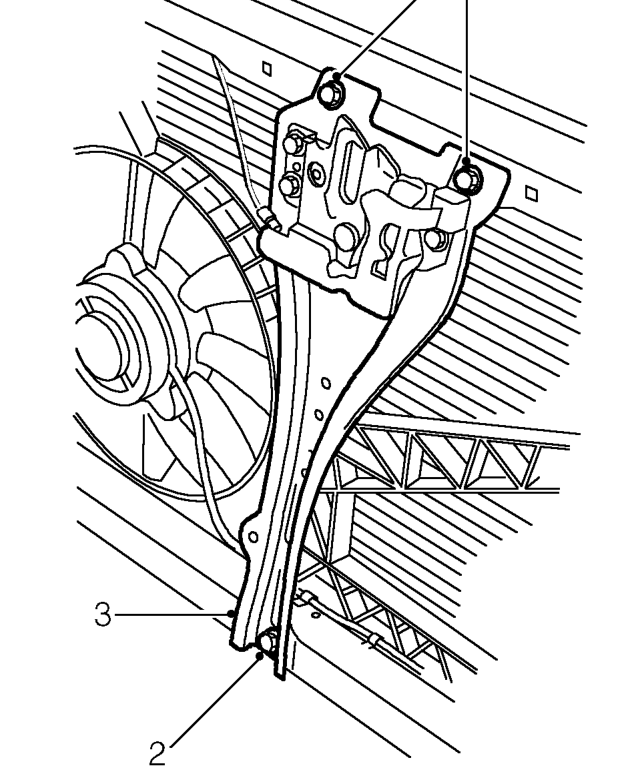

1. Remove front bumper. See BODY, Exterior fittings.

2. Remove 3 bolts securing support stay to bonnet platform and body.
3. Position bonnet platfrom support stay aside.
