Rover 200 Workshop Manual (1995-1999)29 · Air conditioning
29 · Heating & A/C

Condenser cooling fan (page 3 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Air conditioningCondenser cooling fan · page 3 of 3

Do not carry out further dismantling if component is removed for access only.

Do not carry out further dismantling if component is removed for access only.

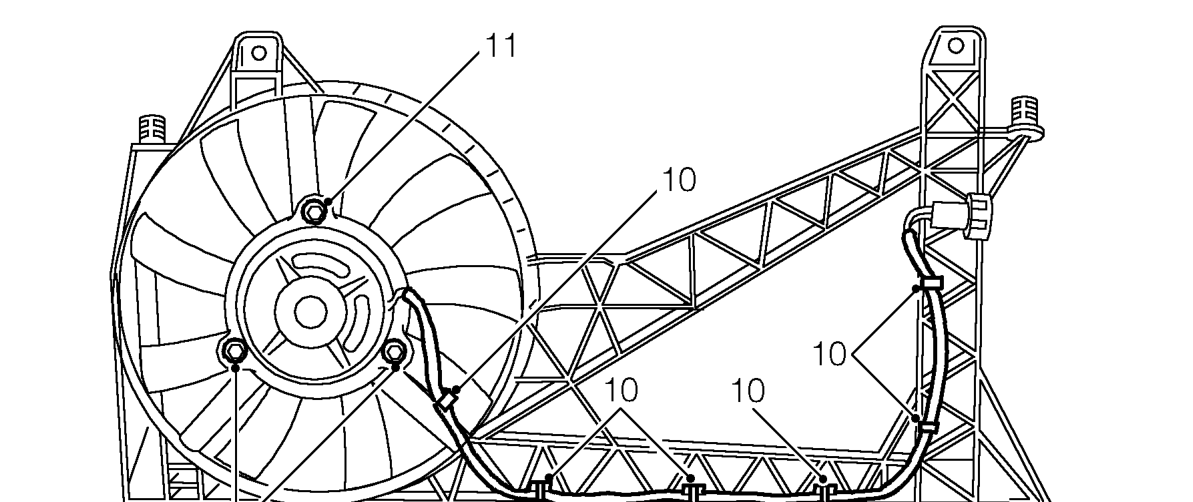

  1. Release cooling fan harness from 6 clips on housing.
  2. Remove 3 nuts securing cooling fan to housing.
  3. Remove cooling fan.
  4. Fit cooling fan to housing, fit nuts and tighten to 9 Nm.
  5. Secure cooling fan harness to clips on housing.

Refit

  1. Position cooling fan housing and locate lower mountings in body.
  2. Fit condenser to cooling fan housing.
  3. Fit 2 bolts securing condenser to cooling fan housing and tighten to 9 Nm.
  4. Fit 2 mounting brackets to cooling fan housing.
  5. Align mounting brackets to body, fit bolts and tighten to 9 Nm.
  6. Position support stay to bonnet platform and body, fit bolts and tighten to 9 Nm.
  7. Fit front bumper. See BODY, Exterior fittings.
