Air conditioning relay module

AIR CONDITIONING RELAY MODULE

Service repair no - 82.20.01

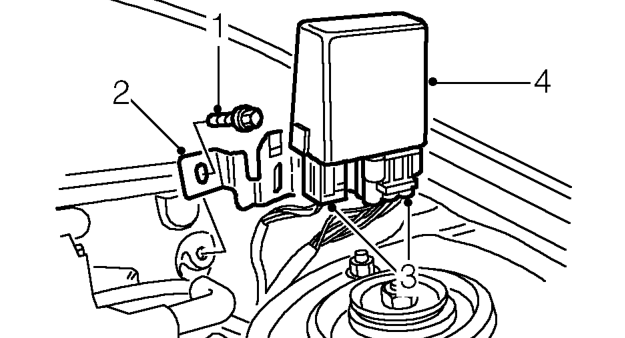

Remove

1. Remove bolt securing relay module mounting bracket to body.
2. Release mounting bracket from body.
3. Disconnect 2 multiplugs from relay module.
4. Remove relay module from vehicle.
5. Remove mounting bracket from relay module.

Refit

1. Fit mounting bracket to relay module.
2. Position relay module and connect multiplugs.
3. Fit relay module to body, fit bolt and tighten to 9 Nm.

COMPRESSOR - ’K’ SERIES

Service repair no - 82.10.20

Remove

1. Recover refrigerant from air conditioning system. See Adjustments.
2. Disconnect battery earth lead.
3. Raise front of vehicle.

WARNING: Support on safety stands.

4. Remove front beam. See FRONT SUSPENSION, Repairs.
5. Remove alternator. See ELECTRICAL, Repairs.

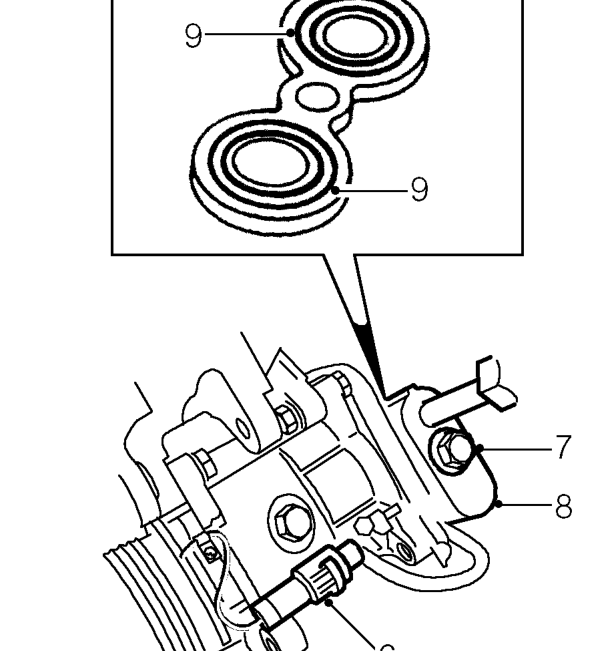

6. Disconnect multiplug from compressor clutch.
7. Remove bolt securing air conditioning pipe union to compressor.
8. Release air conditioning pipe union from compressor.
9. Remove and discard 2 ’O’ rings from compressor.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.
