Fitting a new compressor

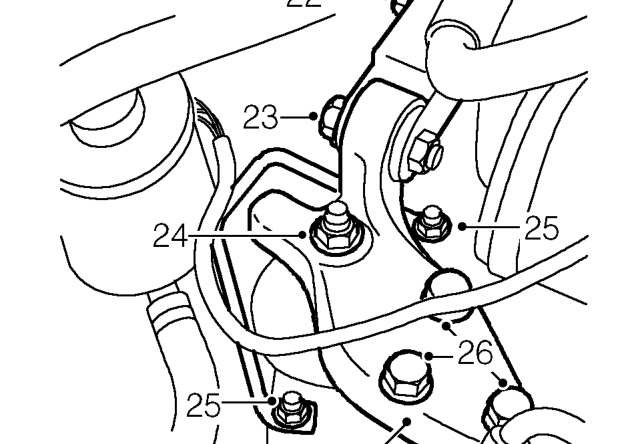

22. Loosen bolt securing RH steady bar to body.
23. Remove bolt securing RH steady bar to engine mounting bracket.
24. Remove nut securing RH engine mounting to bracket.
25. Loosen 2 nuts securing RH engine mounting restraining bar to body and position aside.
26. Remove 3 bolts securing engine mounting bracket to engine and remove bracket.
27. Raise engine to allow access to upper compressor bolt.
28. Remove bolt securing compressor to upper bracket and remove compressor.
29. Restore engine to correct height.

Fitting a new compressor

A new compressor is sealed and pressurised with Nitrogen gas, slowly release the sealing cap, gas pressure should be heard to release as the seal is broken.

NOTE: A new compressor should always have it’s sealing cap in place and must not be removed until immediately prior to fitting.

A new compressor is supplied with an oil fill quantity₃₃ (Xcm ) of 135 cm . A calculated quantity of oil must be drained from a new compressor before fitting.

To calculate the quantity to be drained:

1. Remove the drain plug from the old compressor.
2. Invert compressor and gravity drain the oil into a calibrated measuring cylinder. rotating the compressor clutch plate will assist complete draining.₃
3. Note the quantity of oil drained (Ycm )
4. Calculate the quantity of oil to be drained from the NEW compressor using the following formula:

X cm3- (Y cm3 + 20 cm3) = Q cm3

5. Remove drain plug from new compressor and₃ drain Qcm of oil. Fit and tighten compressor drain plug.

Fitting an existing compressor

When refitting an existing compressor a quantity of refrigerant oil equivalent to the amount obtained when the system was discharged must be added to the compressor.

Use only an approved refrigerant lubricating oil:

Sanden SP-10 Unipart SP-10

CAUTION: Do not use any other type of refrigerant oil.

Refrigerant oil easily absorbs water and must not be stored for long periods. Do not pour unused oil back into the container.
