Rover 200 Workshop Manual (1995-1999)29 · Air conditioning
29 · Heating & A/C

Compressor - ’l’ series (page 3 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Air conditioningCompressor - ’l’ series · page 3 of 3
Diagram

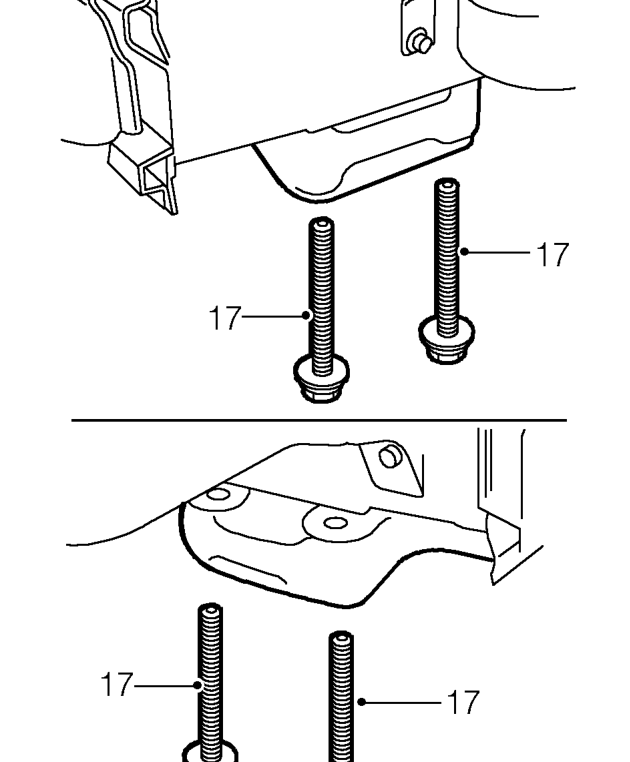

  1. Remove 4 bolts securing front beam to body and lower beam.
Remove 4 bolts securing front beam to body and lower beam.

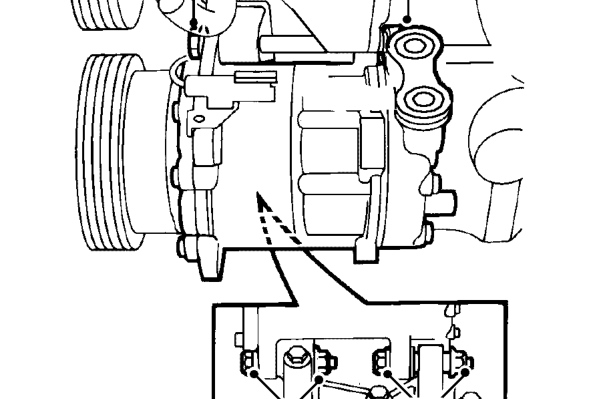

  1. Remove 2 nuts and through bolts securing compressor to lower bracket.
  2. Remove nut and through bolt securing compressor to upper mounting bracket.
Remove nut and through bolt securing compressor to upper mounting bracket.

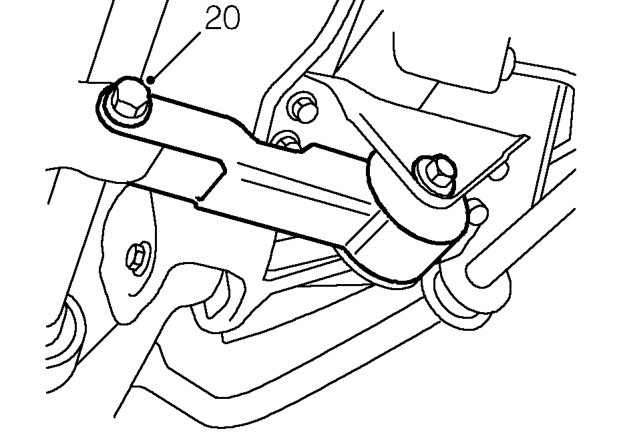

  1. Remove bolt securing lower steady bar to engine.
  2. Support engine on jack.
