Rover 200 Workshop Manual (1995-1999)29 · Air conditioning
29 · Heating & A/C

Compressor - ’l’ series (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Air conditioningCompressor - ’l’ series · page 2 of 3
Diagram

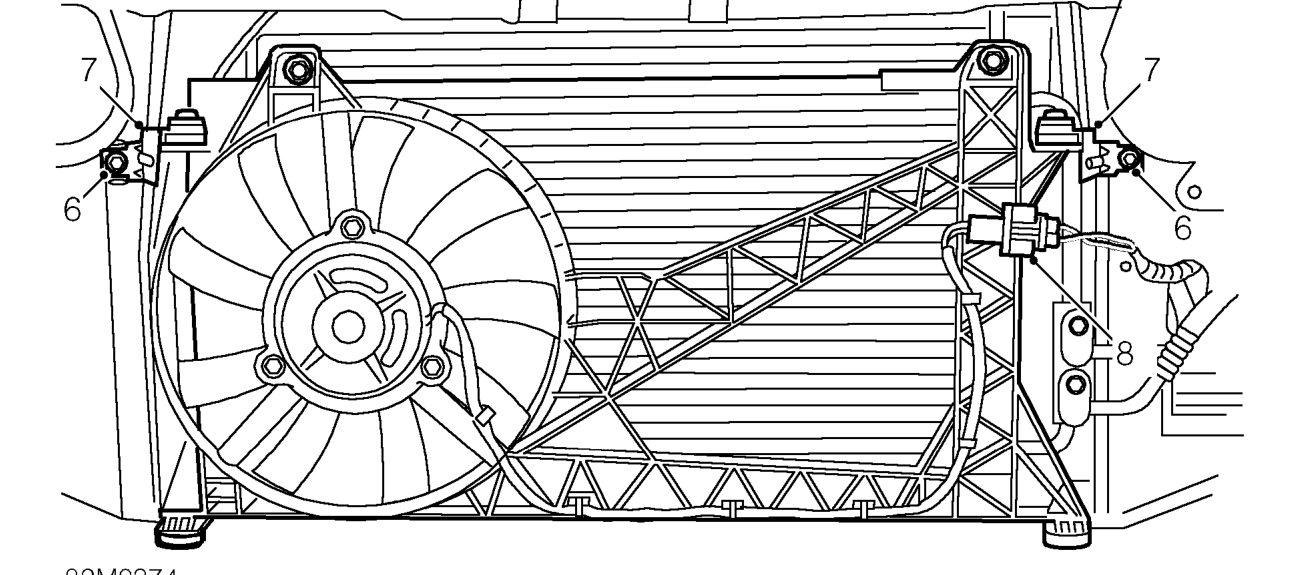

  1. Remove 2 bolts securing cooling fan housing mounting brackets to body.
  2. Remove 2 mounting brackets.
  3. Disconnect cooling fan multiplug from harness.
Disconnect cooling fan multiplug from harness.

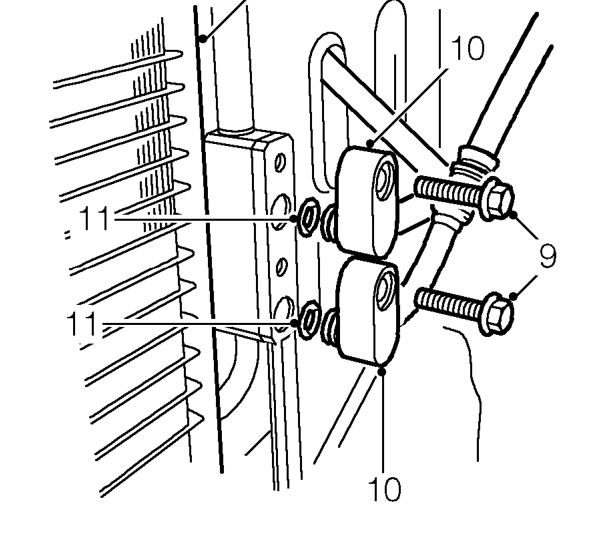

  1. Remove 2 bolts securing air conditioning pipes to condenser.
  2. Disconnect 2 air conditioning pipes from condenser.
  3. Remove and discard 2 ’O’ rings from air conditioning pipe connections.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

  1. Remove condenser.
Remove condenser.

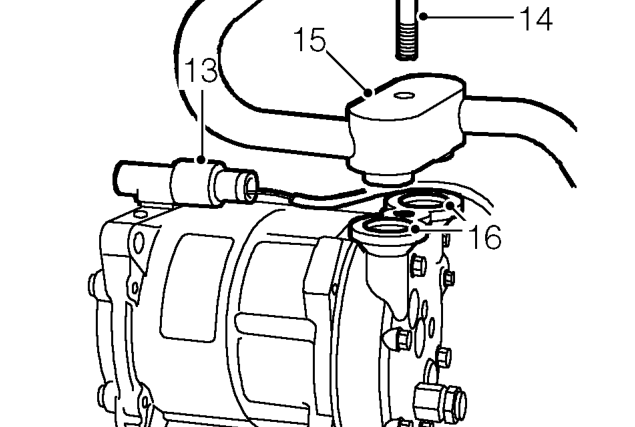

  1. Disconnect multiplug from compressor.
  2. Remove bolt securing air conditioning pipe union to compressor.
  3. Release pipe union and position aside.
  4. Remove and discard 2 ’O’ ring seals from compressor.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.
