Condenser

CONDENSER

Service repair no - 82.15.07

Remove

1. Recover refrigerant from air conditioning system. See Adjustments.
2. Remove condenser cooling fan housing. See this section.

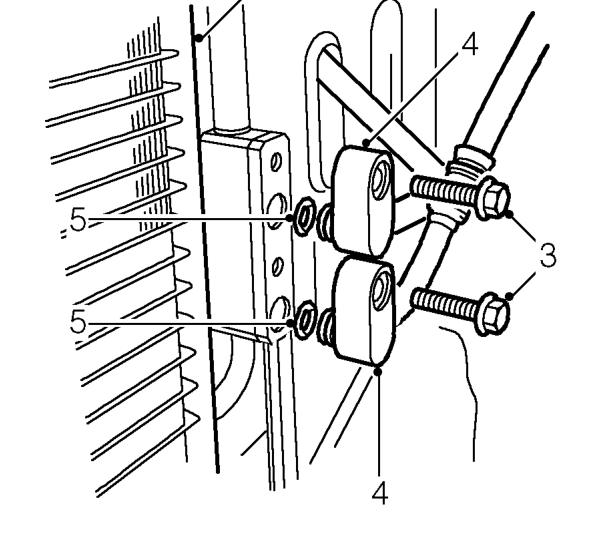

3. Remove 2 bolts securing air conditioning pipes to condenser.
4. Disconnect 2 air conditioning pipes from condenser.
5. Remove and discard 2 ’O’ rings from air conditioning pipe connections.
6. Remove condenser.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

Refit

1. Clean air conditioning pipe connections.
2. Lubricate new ’O’ rings with refrigerant oil and fit to air conditioning pipes.
3. Remove caps from new condenser and fit to old condenser.
4. Position condenser to body, remove caps from air conditioning pipes and connect to condenser.
5. Fit bolts securing air conditioning pipes to condenser and tighten to 6 Nm.
6. Fit condenser cooling fan housing. See this section.
7. Replace receiver/dryer. See this section.
8. Recharge air conditioning system. See Adjustments.
