Air conditioningReceiver/dryer

RECEIVER/DRYER

Service repair no - 82.17.03

Remove

  1. Recover refrigerant from air conditioning system. See Adjustments.
  2. Remove front bumper. See BODY, Exterior fittings.

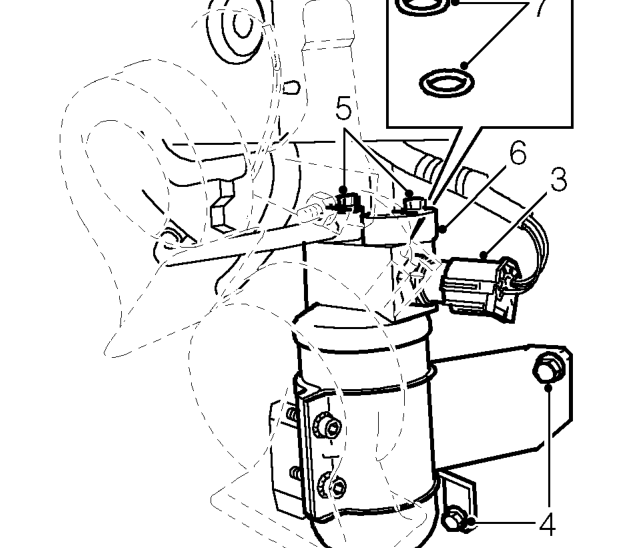

Receiver/dryer – Remove front bumper. See BODY, Exterior fittings.
  1. Disconnect multiplug from trinary pressure switch.
  2. Remove 2 bolts securing receiver/dryer mounting bracket to body.
  3. Remove 2 bolts securing air conditioning pipe connection to receiver/dryer.
  4. Disconnect air conditioning pipe connections from receiver/dryer and remove receiver dryer.
  5. Remove and discard 2 ’O’ rings from air conditioning pipe connections.

CAUTION: Immediately cap all air conditioning pipe connections to prevent the ingress of dirt and moisture into the system.

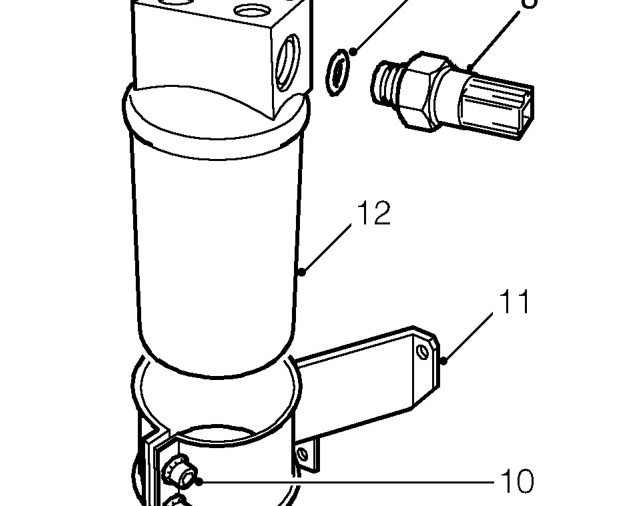

Receiver/dryer – Remove and discard 2 ’O’ rings from air conditioning pipe connections.
  1. Remove trinary pressure switch.
  2. Remove and discard ’O’ ring from trinary pressure switch.
  3. Loosen 2 Allen screws securing mounting bracket to receiver/dryer.
  4. Remove mounting bracket from receiver/dryer.
  5. Discard receiver/dryer.
