Condenser cooling fan (page 2 of 3)
- Make
- Rover
- Model
- 200 Workshop Manual
- Year
- 1995–1999
- Section
- Repairs
Air conditioningCondenser cooling fan · page 2 of 3

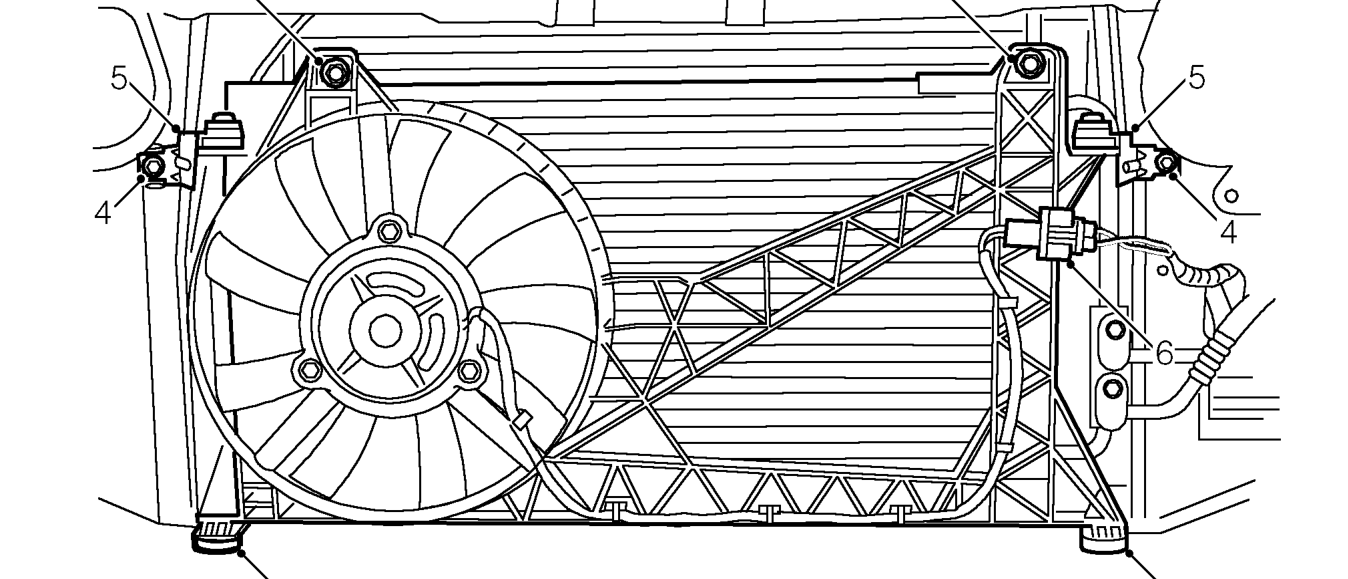

- Remove 2 bolts securing cooling fan housing mounting brackets to body.
- Remove 2 mounting brackets.
- Disconnect cooling fan multiplug from harness.
- Remove 2 bolts securing cooling fan housing to condenser.
- Release condenser from cooling fan housing.
- Release lower mountings from body and remove cooling fan housing.
