Coolant expansion tank

COOLANT EXPANSION TANK

Service repair no - 26.15.01

Remove

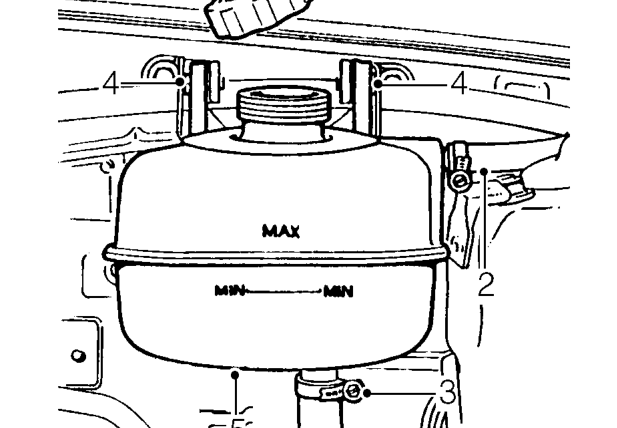

1. Position container to collect fluid loss from expansion tank.

2. Release clip and disconnect hose from expansion tank.
3. Release clip and disconnect coolant feed hose from expansion tank.
4. Remove 2 bolts securing expansion tank to body.
5. Release expansion tank from body and allow coolant to drain.
6. Remove coolant expansion tank.

Refit

1. Position coolant expansion tank.
2. Fit 2 bolts securing expansion tank to body and tighten to 5 Nm.
3. Connect coolant feed hose to expansion tank and secure with clip.
4. Connect hose to expansion tank and secure with clip.
5. Top-up cooling system. See MAINTENANCE.
6. Remove container positioned to catch fluid loss.

RADIATOR COOLING FAN - MODELS WITHOUT AIR CONDITIONING

Service repair no - 26.25.22

Remove

1. Disconnect battery earth lead.

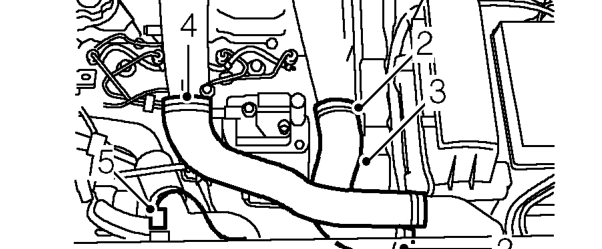

Models with intercooler

2. Loosen clips securing hose to turbocharger pipe and intercooler.
3. Remove intercooler top hose.
4. Release clip securing intercooler bottom hose to inlet manifold intake pipe and move aside.
5. Disconnect multiplug from thermostatic switch.
