Models with intercooler

Refit

1. Manoeuvre cooling fan housing into position and locate on radiator.
2. Fit 2 bolts securing cooling fan housing to radiator and tighten to 9 Nm.
3. Connect multiplug to cooling fan.
4. Connect multiplugs to thermostatic switches.
5. Connect expansion tank hose to radiator and tighten clip.
6. Connect top hose to radiator and tighten clip.

Models with intercooler

7. Connect intercooler bottom hose to inlet manifold intake pipe and tighten clip.
8. Fit hose between intercooler and turbocharger pipe and tighten clips.

All models

9. Fit engine acoustic cover. See BODY, Exterior fittings.
10. Top up cooling system. See MAINTENANCE.

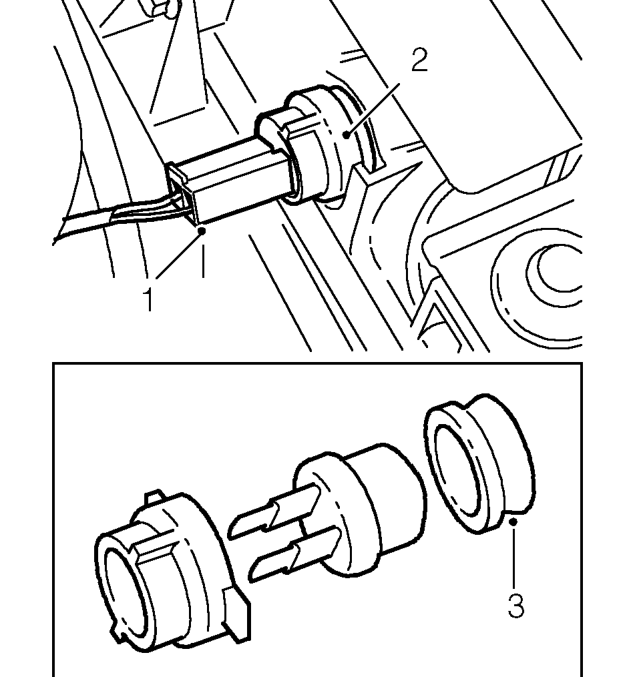

THERMOSTATIC SWITCH - MODELS WITH INTERCOOLER

Service repair no - 26.25.35

Remove

1. Disconnect multiplug from switch.
2. Rotate switch locking ring through 90° and remove.
3. Release switch from radiator, remove and discard seal.

Refit

1. Fit new seal to switch and fit switch to radiator.
2. Secure switch with locking ring.
3. Connect multiplug to switch.
