Coolant pump housing - models without air conditioning

Refit

1. Clean mating faces of coolant pump, housing, and cover.
2. Lubricate new ’O’ rings with Loctite 405 and fit to coolant pump.
3. Fit coolant pump and cover to housing.
4. Fit bolts securing cover to housing and tighten to 10 Nm.
5. Connect vacuum pump oil feed pipe to block and tighten union.
6. Lubricate new ’O’ rings with refrigerant oil and fit to air conditioning pipes.
7. Connect air conditioning pipes to compressor and tighten bolt to 45 Nm.
8. Connect coolant hose to pump and tighten clip.
9. Connect coolant hose between radiator, outlet elbow, and thermostat housing and tighten clips.
10. Connect intercooler hose to inlet manifold and tighten clip.
11. Fit alternator. See ELECTRICAL, Repairs.
12. Replace receiver/dryer. See AIR CONDITIONING, Repairs.
13. Refill cooling system. See this section.
14. Recharge air conditioning system. See AIR CONDITIONING, Adjustments.

COOLANT PUMP HOUSING - MODELS WITHOUT AIR CONDITIONING

Service repair no - 26.50.03

Remove

1. Drain cooling system. See Adjustments.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Remove alternator. See ELECTRICAL, Repairs.
4. Remove front beam. See FRONT SUSPENSION, Repairs.

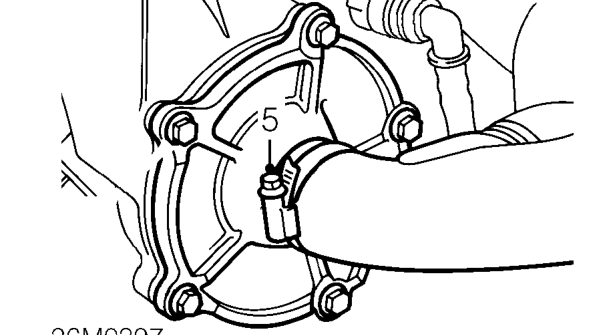

5. Loosen clip and disconnect hose from coolant pump.
6. Position container to collect fluid loss from power steering system.
