Coolant pump - models with air conditioning

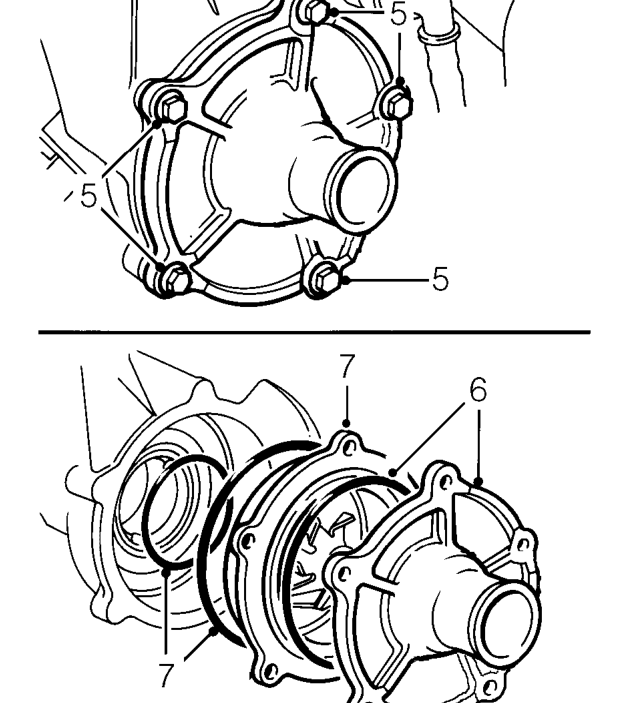

6. Remove coolant pump cover and discard ’O’ ring.
7. Remove coolant pump from housing and discard 2 ’O’ rings.

Refit

1. Clean mating faces of coolant pump, housing and cover.
2. Lubricate 3 new ’O’ rings with Loctite 405 and fit to coolant pump and cover.
3. Fit coolant pump and cover to housing, fit bolts and tighten to 10 Nm.
4. Connect hose to coolant pipe and tighten clip.
5. Fit front beam. See FRONT SUSPENSION, Repairs.
6. Remove stand(s) and lower vehicle.
7. Refill cooling system. See Adjustments.

COOLANT PUMP - MODELS WITH AIR CONDITIONING

Service repair no - 26.50.01.20

Remove

1. Remove alternator. See ELECTRICAL, Repairs.
2. Drain cooling system. See this section.
3. Recover refrigerant from air conditioning system. See AIR CONDITIONING, Adjustments.

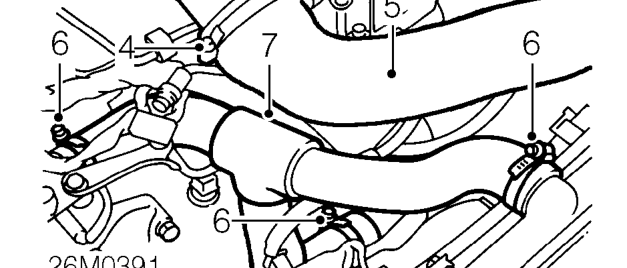

4. Release clip securing intercooler hose to inlet manifold.
5. Release hose from inlet manifold and move aside.
6. Release 3 clips securing coolant hose between radiator, outlet elbow, and thermostat housing.
7. Remove coolant hose.

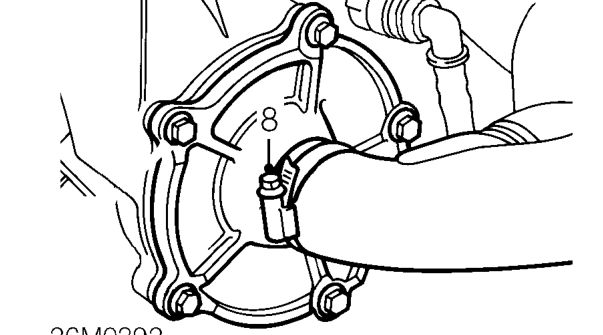

8. Release clip securing hose to coolant pump and move hose aside.
