Cooling system - L SeriesThermostat

THERMOSTAT

Service repair no - 26.45.09

Remove

  1. Remove radiator. See this section.

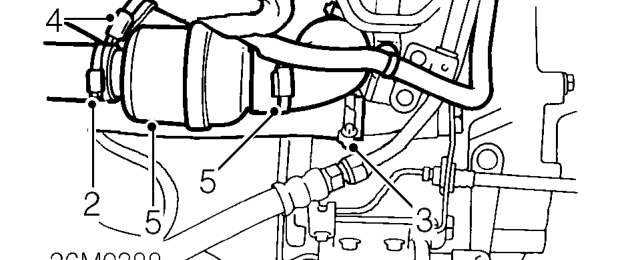

Thermostat – Remove radiator. See this section.
  1. Loosen clip and disconnect hose from coolant pump.
  2. Loosen clip and disconnect hose from coolant rail.
  3. Loosen clip and disconnect radiator top hose from thermostat.
  4. Loosen clip and disconnect oil cooler hose from thermostat.
  5. Remove thermostat and hose assembly. Do not carry out further dismantling if component is removed for access only.
  6. Loosen clip and remove coolant hose from thermostat.
  7. Fit coolant hose to new thermostat and tighten clip.

Refit

  1. Position thermostat and hose assembly.
  2. Connect oil cooler hose to thermostat and tighten clip.
  3. Connect radiator top hose to thermostat and tighten clip.
  4. Connect hose to coolant pump and tighten clip.
  5. Connect hose to coolant rail and tighten clip.
  6. Fit radiator. See this section.

COOLANT PUMP - MODELS WITHOUT AIR CONDITIONING

Service repair no - 26.50.01

Remove

  1. Drain cooling system. See Adjustments.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

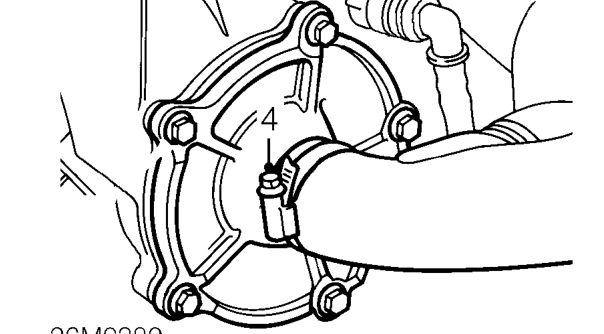

Coolant pump - models without air conditioning – Raise front of vehicle.
  1. Remove front beam. See FRONT SUSPENSION, Repairs.
  2. Loosen clip and disconnect hose from coolant pump.
  3. Remove 5 bolts securing cover to coolant pump housing.
