Radiator - models with air conditioning (page 2 of 2)

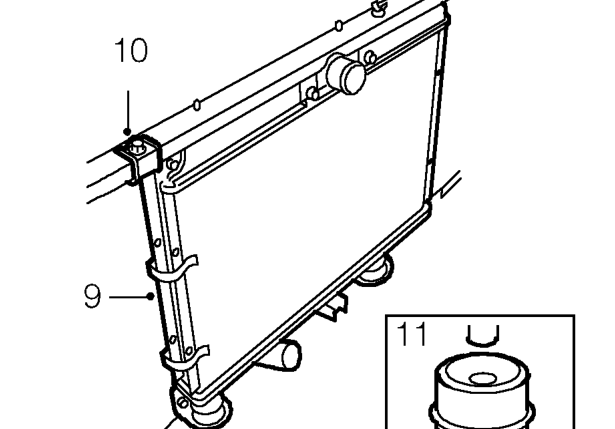

9. Release radiator from 2 lower mountings and remove radiator.
10. Remove top mounting bracket from radiator. Do not carry out further dismantling if component is removed for access only.
11. Remove 2 lower mounting rubbers from old radiator and fit to new.

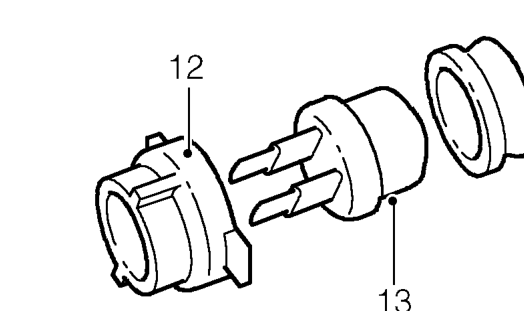

12. Remove 2 locking rings securing thermostatic switches to radiator.
13. Noting their fitted positions, remove thermostatic switches and fit to new radiator.
14. Secure thermostatic switches to radiator with locking rings.

Refit

1. Manoeuvre radiator into position and locate on lower mountings.
2. Fit top mounting bracket to radiator and fit bolt finger tight.
3. Position cooling fan housing and locate on radiator.
4. Fit 2 bolts securing cooling fan housing to radiator and tighten to 9 Nm.
5. Connect multiplug to cooling fan.
6. Connect multiplugs to thermostatic switches.
7. Connect expansion tank hose to radiator and tighten clip.
8. Connect top hose to radiator and tighten clip.
9. If fitted: Fit intercooler. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
10. Refill cooling system. See Adjustments.
