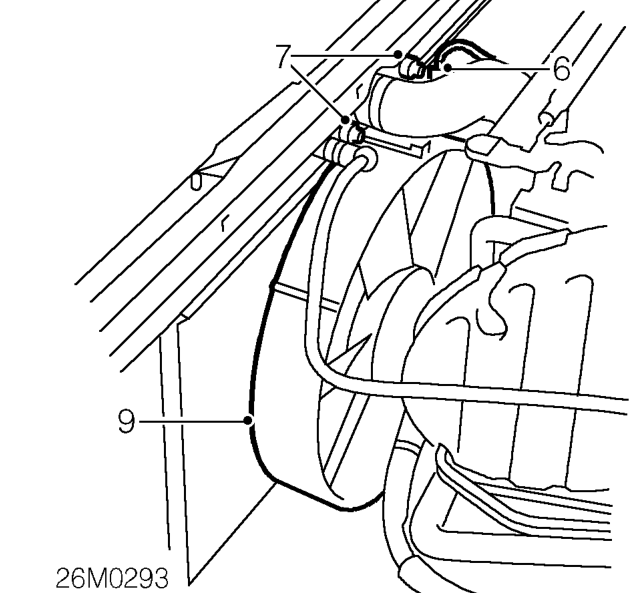

6. Disconnect multiplug from radiator cooling fan.
7. Remove 2 bolts securing cooling fan housing to radiator.
8. Release cooling fan housing from spigot on radiator.
9. Manoeuvre cooling fan housing around radiator top hose and remove from vehicle.

Refit

1. Manoeuvre cooling fan housing around radiator top hose and into position on radiator.
2. Fit bolts securing cooling fan housing to radiator and tighten to 9 Nm.
3. Connect multiplug to cooling fan.

Models with intercooler

4. Connect intercooler bottom hose to inlet manifold intake pipe and secure with clip.
5. Fit hose between intercooler and turbocharger pipe and tighten clips.
6. Connect multiplug to thermostatic switch.

All models

7. Connect battery earth lead.
