Radiator - models with air conditioning

Refit

1. Manoeuvre radiator and intercooler assembly into position and locate on lower mountings.
2. Fit top mounting brackets to radiator, align mounting bracket to bonnet platform, fit bolts and tighten to 25 Nm.
3. Connect multiplug to thermostatic switch.
4. Connect top hose to radiator and tighten clip.
5. Connect expansion tank hose to radiator and tighten clip.
6. Fit radiator cooling fan. See this section.
7. Fit engine acoustic cover. See BODY, Exterior fittings.
8. Fit air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
9. Refill cooling system. See Adjustments.

RADIATOR - MODELS WITH AIR CONDITIONING

Service repair no - 26.40.01.20

Remove

1. If fitted: Remove intercooler. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
2. Drain cooling system. See Adjustments.

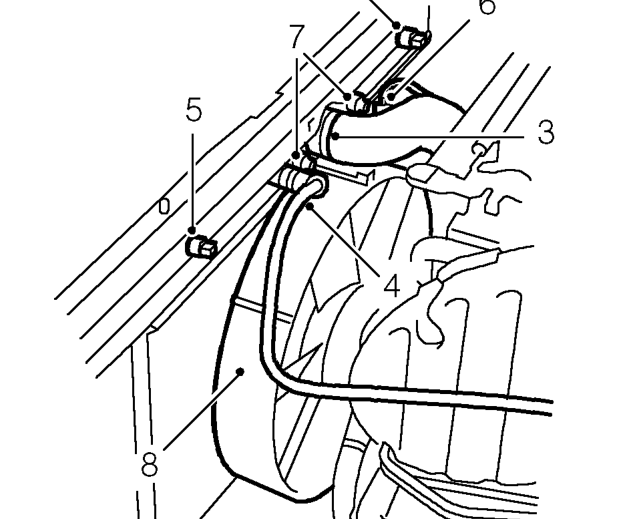

3. Loosen clip and disconnect top hose from radiator and position hose aside.
4. Loosen clip and disconnect expansion tank hose from radiator and position hose aside.
5. Disconnect 2 multiplugs from thermostatic switches.
6. Disconnect multiplug from cooling fan.
7. Remove 2 bolts securing cooling fan housing to radiator.
8. Release cooling fan housing from radiator and remove.
