Rover 200 Workshop Manual (1995-1999)14 · Cooling system - L Series
14 · Engine

Coolant pump - models with air conditioning (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Cooling system - L SeriesCoolant pump - models with air conditioning · page 2 of 2
Diagram

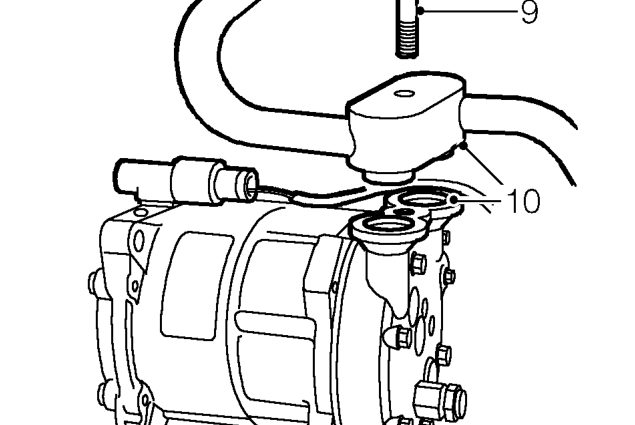

  1. Remove bolt securing air conditioning pipes to compressor.
  2. Release pipes from compressor and remove and discard ’O’ rings.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

Release pipes from compressor and remove and discard ’O’ rings.

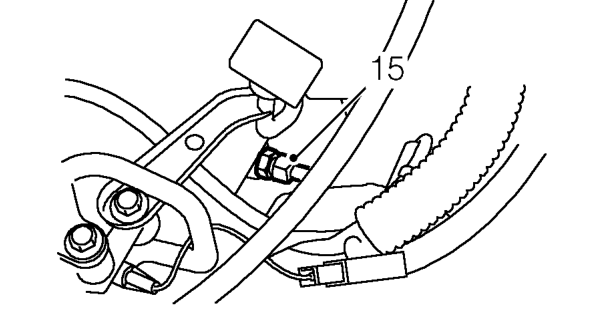

  1. Loosen union and disconnect vacuum pump oil feed pipe from block.
Loosen union and disconnect vacuum pump oil feed pipe from block.

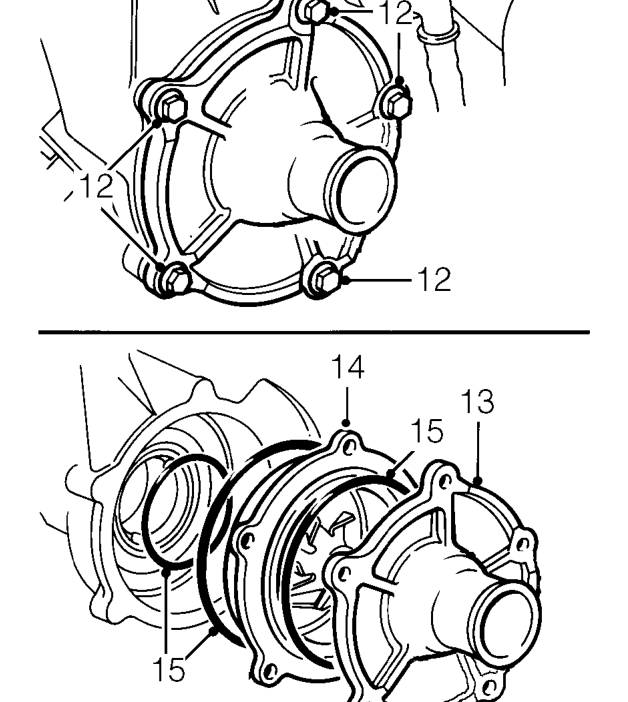

  1. Remove 5 bolts securing coolant pump cover to housing.
  2. Remove cover.
  3. Remove pump from housing.
  4. Remove 3 ’O’ rings from pump and discard.
