REAR QUARTER TRIM CASING - 5 DOOR

Service repair no - 76.13.13

Remove

  1. Remove ’B’ post lower trim casing. See this section.
Rear quarter trim casing - 5 door – Remove ’B’ post lower trim casing. See this section.

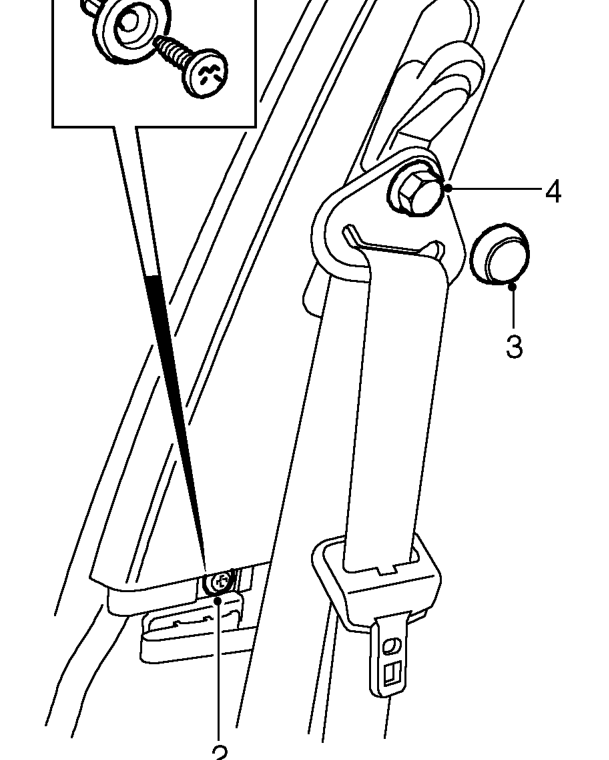

  1. Remove scrivet securing trim casing to ’B’ post.
  2. Remove cover from seat belt upper anchorage bolt.
  3. Remove seat belt upper anchorage bolt and discard.
Rear quarter trim casing - 5 door – Remove seat belt upper anchorage bolt and discard.

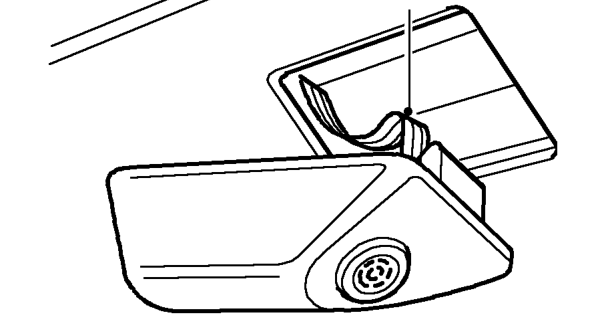

  1. Release volumetric sensor from trim casing and disconnect multiplug.
Rear quarter trim casing - 5 door – Release volumetric sensor from trim casing and disconnect multiplug.

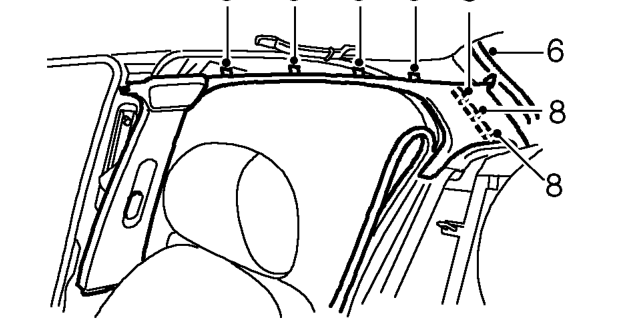

  1. Open tailgate and remove seal from aperture.
  2. Fold rear seat forward.
  3. Release trim casing from 7 clips and remove.

Refit

  1. Position trim casing to body and secure to clips.
  2. Fit tailgate aperture seal and reposition rear seat.
  3. Fit seat belt upper anchorage bolt and tighten to 50 Nm.
  4. Fit cover to upper anchorage bolt.
  5. Connect multiplug to volumetric sensor and secure to trim casing.
  6. Fit scrivet securing trim casing to ’B’ post.
  7. Fit ’B’ post lower trim casing. See this section.
