Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Fascia

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Interior trim components › Fascia
BodyFascia

FASCIA

Service repair no - 76.46.23.99

Remove

WARNING: Refer to SRS section for safety precautions.

  1. Disconnect both battery leads, earth lead first.
  2. Remove front console. See this section.
Fascia – Remove front console. See this section.

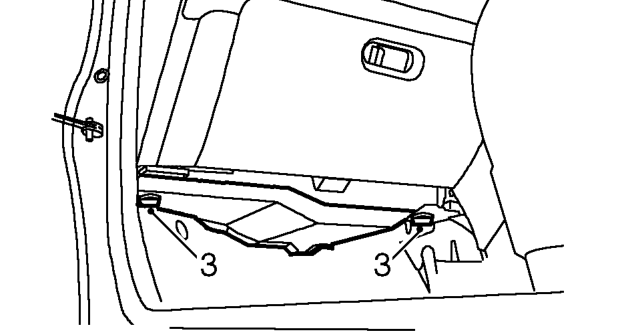

  1. Release 2 turnbuckles and remove passengers side lower cover.
  2. Remove glove box. See this section.

Models fitted with passenger airbag:

Models fitted with passenger airbag: – Remove glove box. See this section.

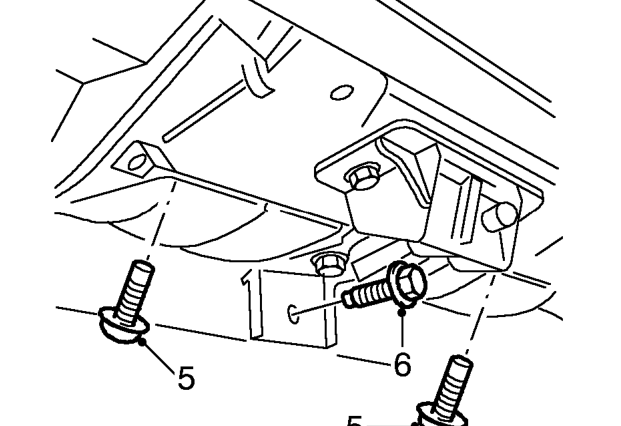

  1. Remove 2 Torx screws securing passenger airbag to fascia.
  2. Remove bolt securing passenger airbag support bracket to support arm.
Models fitted with passenger airbag: – Remove bolt securing passenger airbag support bracket to support arm.

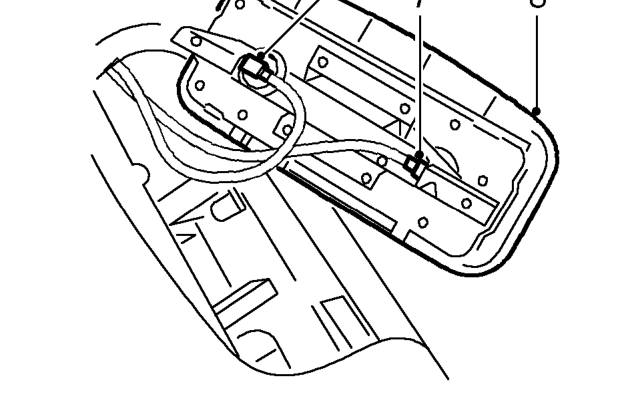

  1. Release passenger airbag from fascia and disconnect 2 multiplugs.
  2. Remove passenger airbag.
