Models fitted with passenger airbag:

19. Remove nut securing fascia to body.

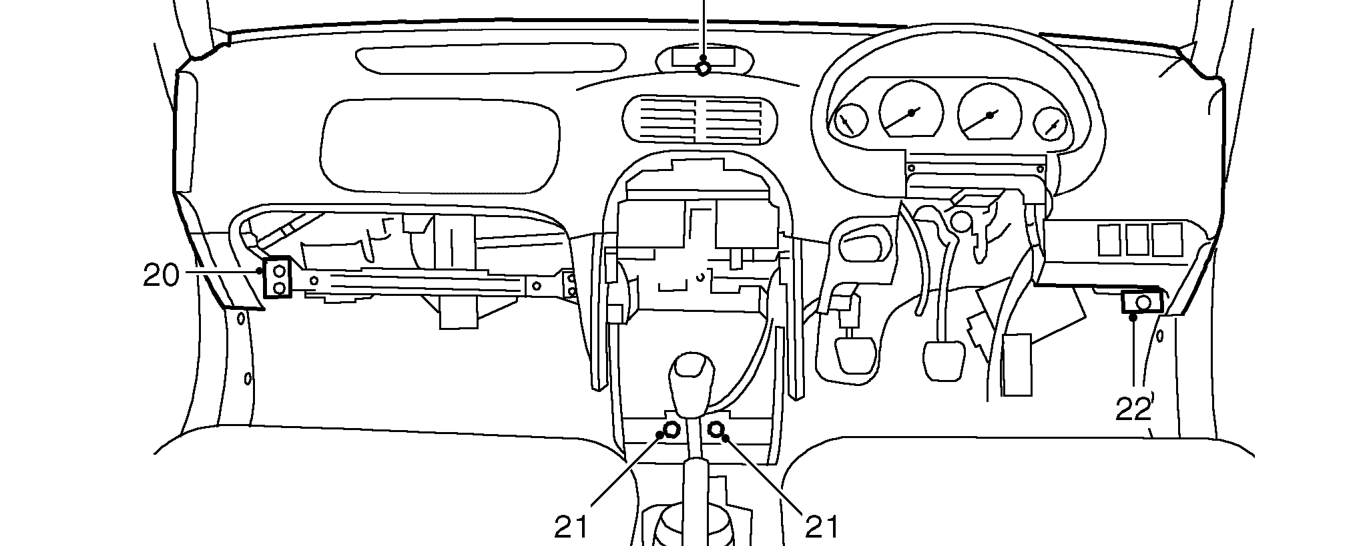

20. Remove bolt securing passengers side of fascia to mounting bracket.
21. Remove 2 bolts securing centre of fascia to mounting bracket.
22. Remove bolt securing drivers side of fascia to mounting bracket.
23. Remove fascia.

Refit

1. Position fascia to vehicle.
2. Fit centre mounting nut and tighten to 9 Nm.
3. Fit bolt securing drivers side of fascia to mounting bracket and tighten to 9 Nm.
4. Fit bolts securing centre of fascia to mounting bracket and tighten to 9 Nm.
5. Fit bolt securing passengers side of fascia to mounting bracket and tighten to 9 Nm.
6. Fit bolts securing ends of fascia to body.
7. Fit end covers to fascia.
8. Fit finisher to clock.
9. Connect SRS harness multiplugs.
10. Fit bolt securing SRS harness earth strap and tighten to 9 Nm.
11. Connect multiplug to SRS control unit.
12. Fit cover to SRS control unit and secure with scrivets.
13. Connect multiplugs to interior fusebox.
14. Fit steering column. See STEERING, Repairs.
15. Fit heater controls. See HEATING & VENTILATION, Repairs.
16. Fit drivers side lower cover and secure turnbuckles.

Models fitted with passenger airbag:

17. Fit bolt securing passenger airbag support bracket to support arm and tighten to 9 Nm.
18. Position passenger airbag to fascia and connect multiplugs.
19. Fit passenger airbag to fascia. Fit and tighten Torx screws to 9 Nm.

All models:

20. Fit glove box. See this section.
21. Fit passengers side lower cover and secure turnbuckles.
22. Fit front console. See this section.
23. Connect both battery leads, earth lead last.
