Models fitted with sun roof:

Models fitted with sun roof:

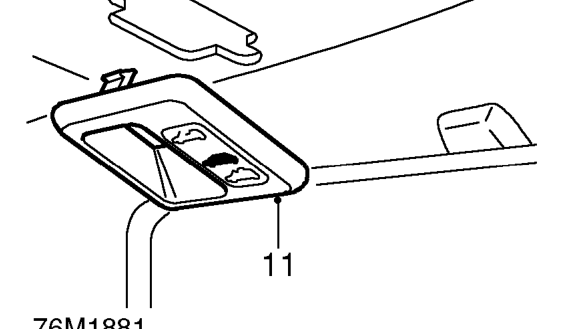

11. Remove sun roof switch escutcheon.

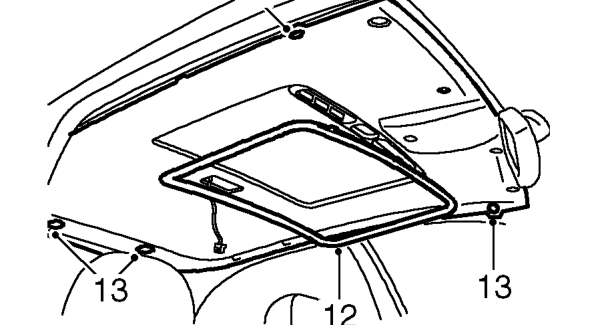

12. Remove trim finisher from sun roof aperture.

All models:

13. Release 4 trim clips securing headlining to roof.
14. Remove headlining.

NOTE: Take care not to bend headlining on removal and refitting.

Refit

1. With assistance position headlining to roof.
2. Fit trim clips securing headlining to roof.

Models fitted with sun roof:

3. Fit trim finisher to sun roof aperture.
4. Fit sun roof switch escutcheon.

All models:

5. Fit sealing rubber to top of tailgate aperture.
6. Fit grab handles to roof and secure with screws.
7. Fit interior light. See ELECTRICAL, Repairs.
8. Fit sun visor clips to roof and secure with screws.
9. Fit sun visors to roof and secure with screws.
10. Fit both rear quarter trim casings. See this section.
11. Fit both ’A’ post upper trim casings. See this section.
