04 · Engine

Engine rear mounting (page 2 of 3)

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Repairs
Engine - K SeriesEngine rear mounting · page 2 of 3
Diagram

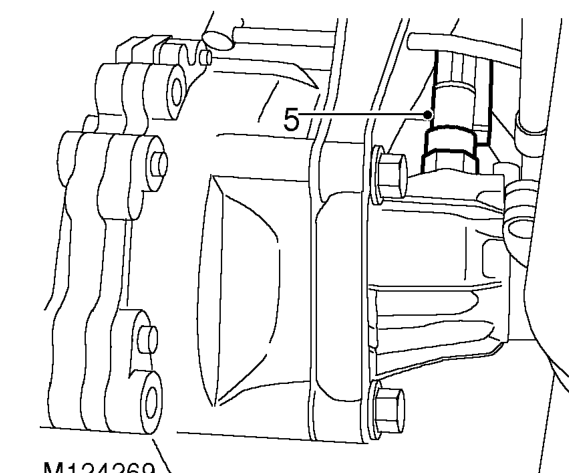

  1. Disconnect speed sensor multiplug.
Disconnect speed sensor multiplug.

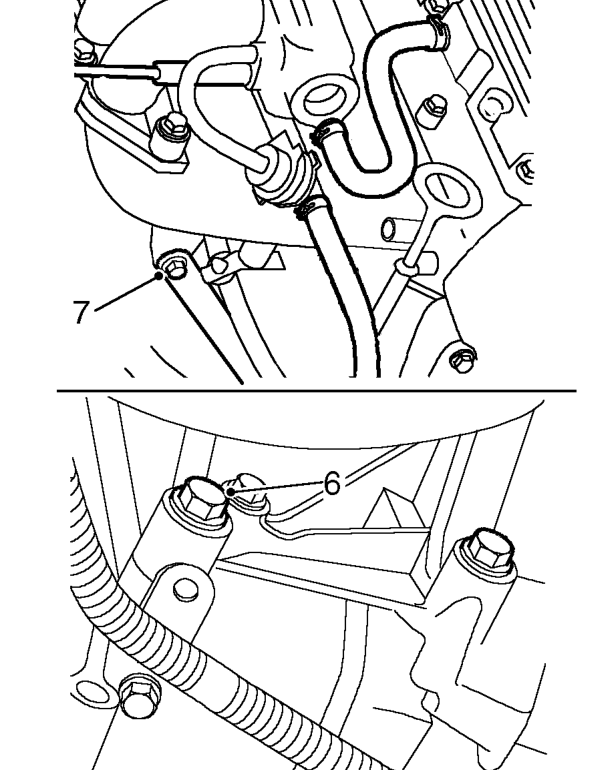

  1. Remove bolt securing engine steady bar to cylinder block.
  2. Remove bolt securing engine steady bar to inlet manifold.
Remove bolt securing engine steady bar to inlet manifold.

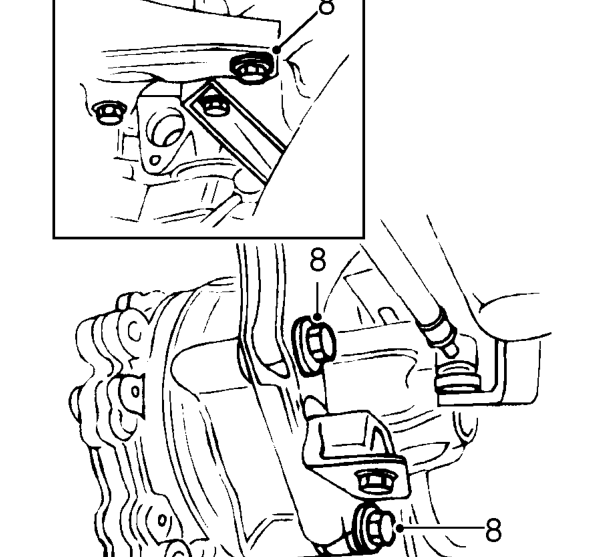

  1. Remove 3 bolts securing engine rear mounting bracket to engine.
Remove 3 bolts securing engine rear mounting bracket to engine.

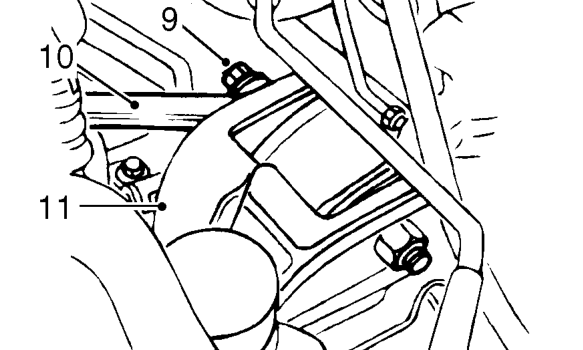

  1. Remove through bolt securing engine rear mounting bracket to engine rear mounting.
  2. Move engine steady bar aside.
  3. Remove engine rear mounting bracket.
