Airbag control and diagnostic unit ’d’ series (page 2 of 2)

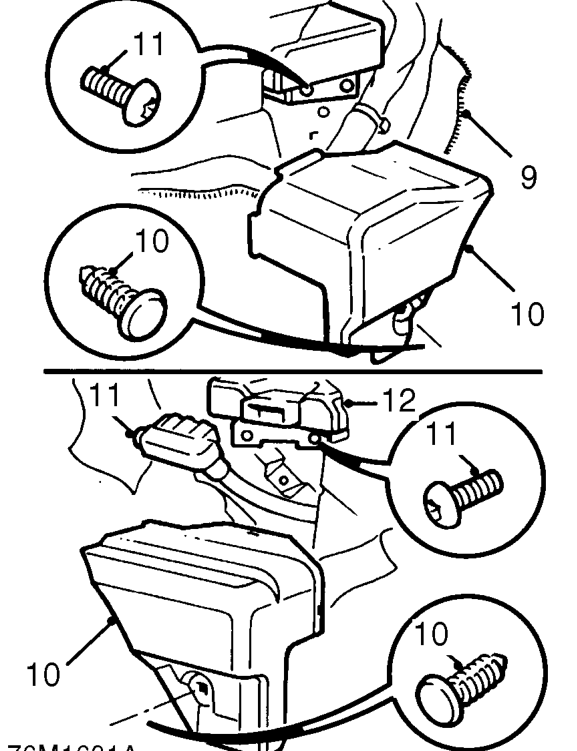

9. Pull back carpet for access to control and diagnostic unit protective covers.
10. Remove studs securing protective covers and remove covers from unit.
11. Disconnect multiplug and remove 4 Torx screws securing control and diagnostic unit.
12. Remove unit from LH side.

Refit

CAUTION: Ensure unit faces are clean and free from burrs. An incorrectly mounted unit could cause the system to malfunction.

1. Position unit, fit Torx screws and tighten to 9 Nm.
2. Connect multiplug.
3. Fit protective covers over unit and fit retaining studs.
4. Reposition carpet over unit covers.
5. Fit foot rest, fit and tighten bolts.
6. Remove RED safety connector from passenger airbag module multiplug and secure in storage clip.
7. Connect passenger airbag module multiplug to airbag harness.
8. Fit glove box. See BODY, Interior trim components.
9. Remove RED safety connector from drivers airbag module multiplug and secure in storage clip.
10. Connect drivers airbag module multiplug.
11. Fit access panel to steering wheel and secure with screw.
12. Connect both battery leads, earth lead last.
13. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
