Rover 400 Workshop Manual (1995-2000)22 · Steering
22 · Steering & suspension

Steering (Steering column): Description and operation

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Description and operation › Steering column
SteeringSteering column

STEERING COLUMN

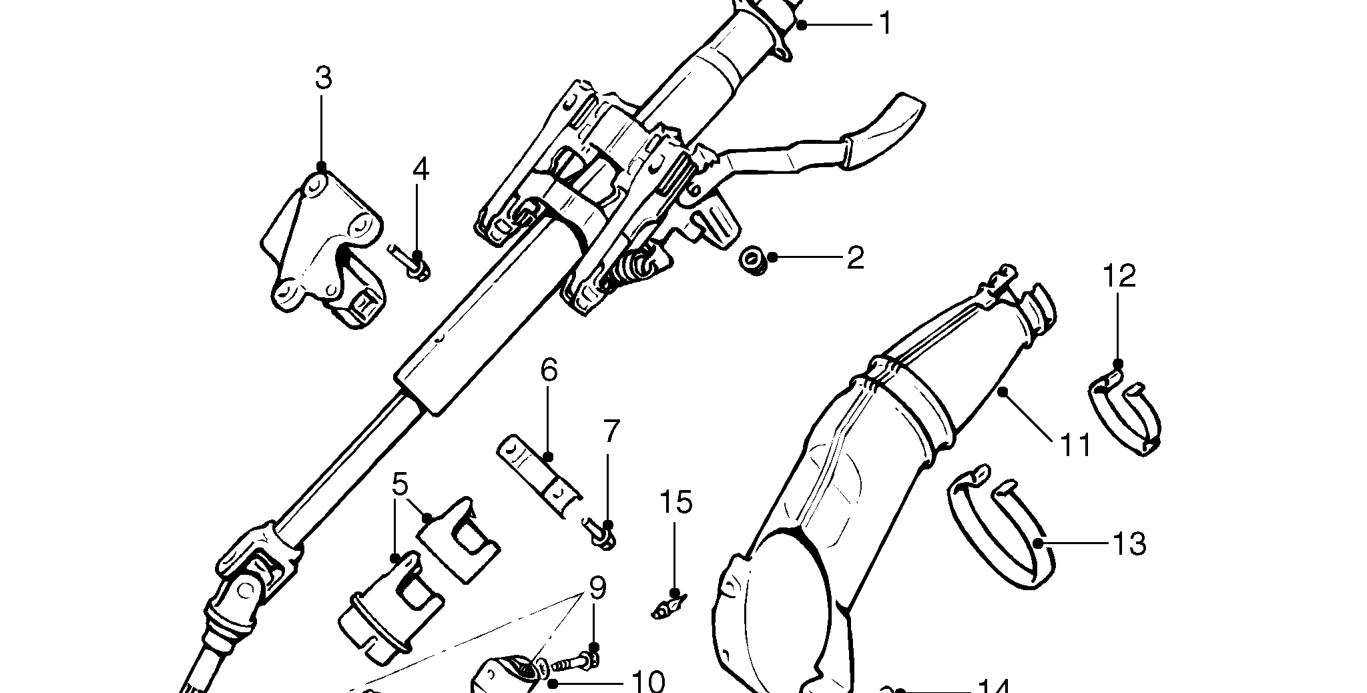

Steering column
  1. Steering column assembly
  2. Flange nut - M8
  3. Column pivot
  4. Bolt/washer - M8
  5. Retainer collar - steering column
  6. Bracket B - steering column
  7. Bolt/washer - M8
  8. Universal joint
  9. Bolt - M8
  10. Lock washer - internal
  11. Cover - steering joint
  12. Clip B - cover
  13. Clip A - cover
  14. Trim clip - cover
  15. Stud clip - cover location
