STEERING RACK

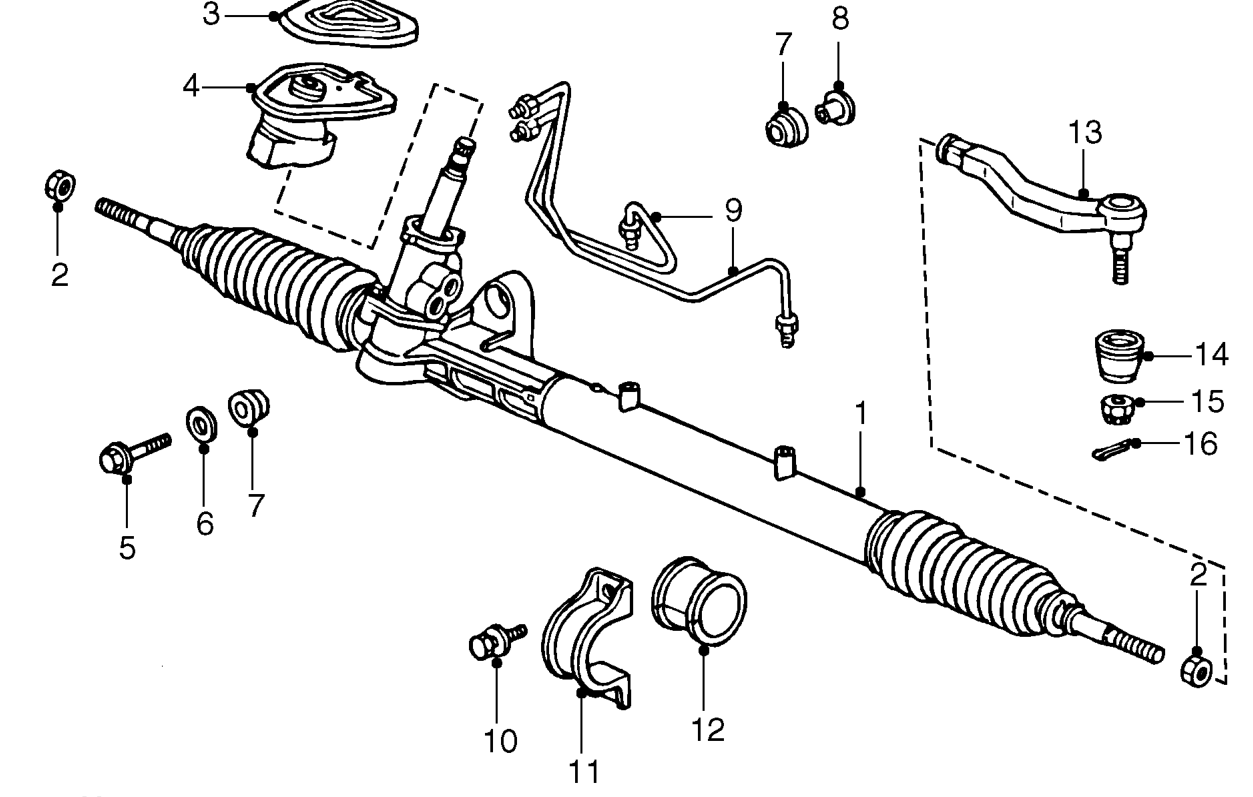

Steering rack
  1. Power steering gear assembly
  2. Nut - M14
  3. Grommet A - pinion shaft to body
  4. Grommet B - pinion housing
  5. Bolt - M10 - mounting
  6. Plain washer - 10 mm
  7. Mounting bush
  8. Collar - mounting bush
  9. Pipes - valve body to power cylinders
  10. Bolt-washer - M10
  11. Mounting bracket
  12. Mounting rubber - cushion
  13. Tie-rod end
  14. Boot - tie-rod ball joint
  15. Castle nut - M10
  16. Split pin - 2.0 mm
