5. Install the knuckle on the lower arm, then tighten the castle nut and install a new cotter pin. Bend cotter pin as shown.

CAUTION:

• Be careful not to damage the ball joint boot.
• Torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the pin hole. Do not align the nut by loosening.

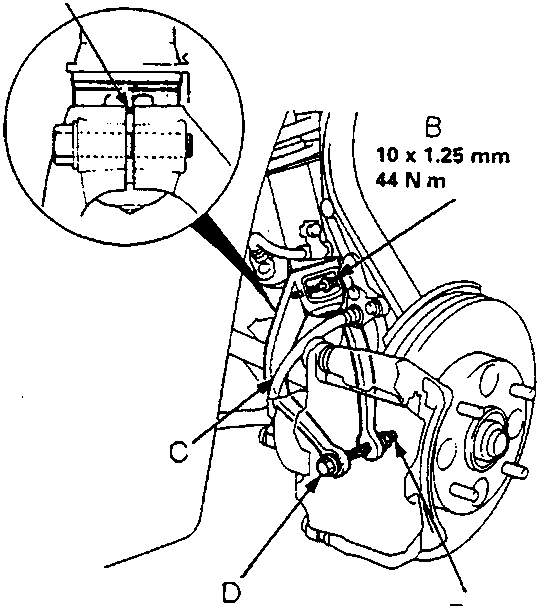

1. Aligning Tab
2. Damper Pinch Bolt
3. Damper Fork
4. Damper Fork Bolt
5. Damper Fork Nut
6. Install the damper fork over the driveshaft and onto the lower arm. Install the damper in the damper fork so the aligning tab is aligned with the slot in the damper fork.
7. Loosely install the damper pinch bolt, damper fork bolt and a new damper fork nut.

CAUTION: The bolts and nut should be tightened with the vehicle's weight on the damper.

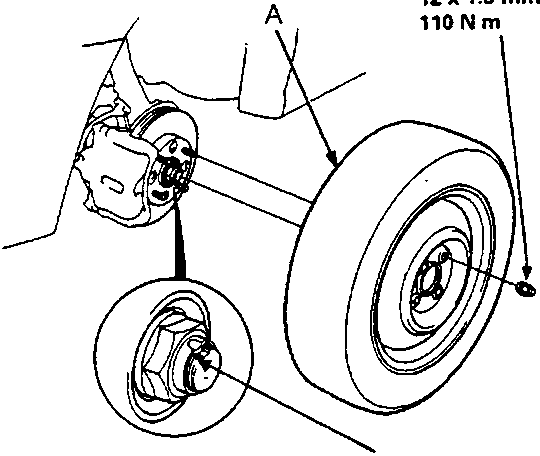

1. Front Wheel
2. Wheel Nut
3. Spindle Nut

8. Tighten the new spindle nut.
9. Install the front wheels with the wheel nuts.

Note: Before installing the wheel, clean the mating surface of the brake disc and inside of the wheel.

10. Tighten the damper pinch bolt and the new damper fork nut.
11. Refill the transmission with recommended oil or fluid.
12. Check the front wheel alignment and adjust if necessary, see SUSPENSION.
