Drive shafts47M0073 · page 1 of 5

the driveshaft is aligned to the outboard joint inner race end.

  1. Lightly tap on the inner race with a plastic hammer to make sure the joint does not move on the driveshaft.

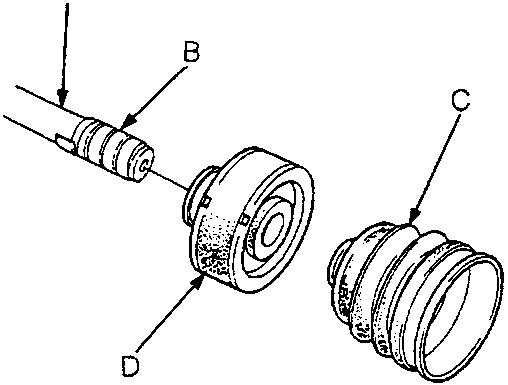

Diagram showing driveshaft assembly with labels A, B, C, D

47M0073

  1. A Driveshaft
  2. B Vinyl Tape
  3. C Inboard Boot
  4. D Dynamic Damper
  1. Wrap the splines with vinyl tape to prevent damage to the inboard boot and dynamic damper.
  2. Install the dynamic damper and inboard boot to the driveshaft, then remove the vinyl tape.

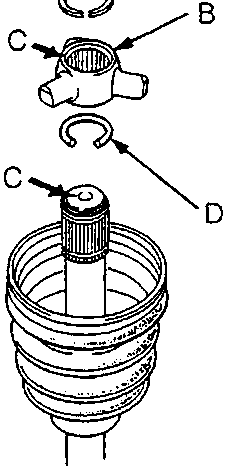

Diagram showing circlip, spider, mark, and stopper ring assembly with labels A, B, C, D

47M0074

  1. A Circlip
  2. B Spider
  3. C Mark
  4. D Stopper Ring
  1. Install the stopper ring into the driveshaft groove.

Note: Always rotate the stopper ring in its groove to be sure it is fully seated.

  1. Install the spider on the driveshaft by aligning the marks on the spider and end of the driveshaft.
  2. Fit the circlip into the driveshaft groove.

Note: Always rotate the circlip in its groove to be sure it is fully seated.

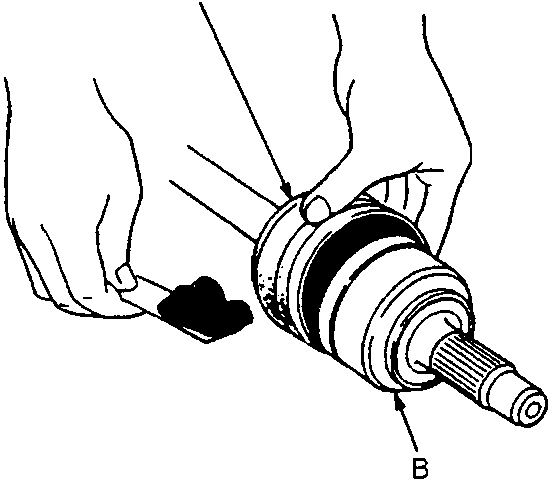

Diagram showing hands installing outboard boot onto outboard joint with labels A, B

47M0075

  1. A Outboard Boot
  2. B Outboard Joint
  1. Pack the outboard joint and outboard boot with the joint grease included in the new driveshaft set.
    Grease Quantity = 80 – 100 g
